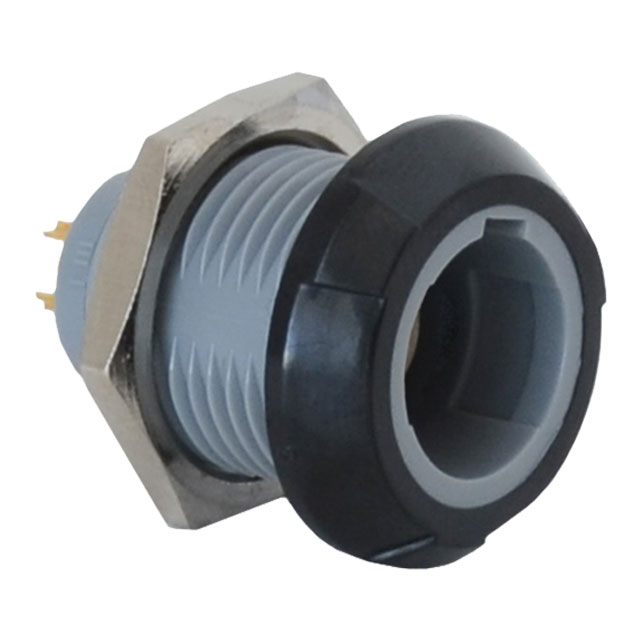

Specification	PLB4G020008

Applications	Medical, Industrial, Testing Equipment & Measurement
Color	Gray, Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20 Ąin
Contact Material	Copper Alloy
Current Rating	5 A
Fastening Type	Latch Lock, Push-Pull
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Mounting Feature	Bulkhead, Front or Rear Side Nut
Mounting Type	Panel Mount
Number of Positions	8
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-50 °C
Orientation Angle	0 °
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shielding	Unshielded
Termination	Solder Cup

PLB4G Series

...

Part	Applications	Contact Material	Shell Material	Number of Positions	Mounting Type	Orientation	Mounting Feature	Termination	Insert Material	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Mating	Shielding	Color	Ingress Protection Description	Ingress Protection IP Rating	Primary Material	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Orientation Angle
ITT Cannon, LLC PLB4G620E06	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	6	Panel Mount	E	Bulkhead Front or Rear Side Nut	Solder Cup	PEEK Polyetheretherketone	20 Ąin	Latch Lock Push-Pull	Gold	Unshielded	Blue Gray	Dust Protected	IP50	Plastic	6 A	-50 °C	150 °C	Female Sockets Receptacle
ITT Cannon, LLC PLB4G820014	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	14	Panel Mount		Bulkhead Front or Rear Side Nut	Solder Cup	PEEK Polyetheretherketone	20 Ąin	Latch Lock Push-Pull	Gold	Unshielded	Gray	Dust Protected	IP50	Plastic	2 A	-50 °C	150 °C	Female Sockets Receptacle	0 °
ITT Cannon, LLC PLB4G420E14	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	14	Panel Mount	E	Bulkhead Front or Rear Side Nut	Solder Cup	PEEK Polyetheretherketone	20 Ąin	Latch Lock Push-Pull	Gold	Unshielded	Gray Yellow	Dust Protected	IP50	Plastic	2 A	-50 °C	150 °C	Female Sockets Receptacle
ITT Cannon, LLC PLB4G220007	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	7	Panel Mount		Bulkhead Front or Rear Side Nut	Solder Cup	PEEK Polyetheretherketone	20 Ąin	Latch Lock Push-Pull	Gold	Unshielded	Gray Red	Dust Protected	IP50	Plastic	5 A	-50 °C	150 °C	Female Sockets Receptacle	0 °
ITT Cannon, LLC PLB4G420J09	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	9	Panel Mount	J	Bulkhead Front or Rear Side Nut	Solder Cup	PEEK Polyetheretherketone	20 Ąin	Latch Lock Push-Pull	Gold	Unshielded	Gray Yellow	Dust Protected	IP50	Plastic	3 A	-50 °C	150 °C	Female Sockets Receptacle
ITT Cannon, LLC PLB4G620A09	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	9	Panel Mount	A	Bulkhead Front or Rear Side Nut	Solder Cup	PEEK Polyetheretherketone	20 Ąin	Latch Lock Push-Pull	Gold	Unshielded	Blue Gray	Dust Protected	IP50	Plastic	3 A	-50 °C	150 °C	Female Sockets Receptacle
ITT Cannon, LLC PLB4G420H10	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	10	Panel Mount	H	Bulkhead Front or Rear Side Nut	Solder Cup	PEEK Polyetheretherketone	20 Ąin	Latch Lock Push-Pull	Gold	Unshielded	Gray Yellow	Dust Protected	IP50	Plastic	3 A	-50 °C	150 °C	Female Sockets Receptacle
ITT Cannon, LLC PLB4G020C03	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	3	Panel Mount	C	Bulkhead Front or Rear Side Nut	Solder Cup	PEEK Polyetheretherketone	20 Ąin	Latch Lock Push-Pull	Gold	Unshielded	Black Gray	Dust Protected	IP50	Plastic	10 A	-50 °C	150 °C	Female Sockets Receptacle
ITT Cannon, LLC PLB4G420A02	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	2	Panel Mount	A	Bulkhead Front or Rear Side Nut	Solder Cup	PEEK Polyetheretherketone	20 Ąin	Latch Lock Push-Pull	Gold	Unshielded	Gray Yellow	Dust Protected	IP50	Plastic	10 A	-50 °C	150 °C	Female Sockets Receptacle
ITT Cannon, LLC PLB4G820H03	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	3	Panel Mount	H	Bulkhead Front or Rear Side Nut	Solder Cup	PEEK Polyetheretherketone	20 Ąin	Latch Lock Push-Pull	Gold	Unshielded	Gray	Dust Protected	IP50	Plastic	10 A	-50 °C	150 °C	Female Sockets Receptacle
