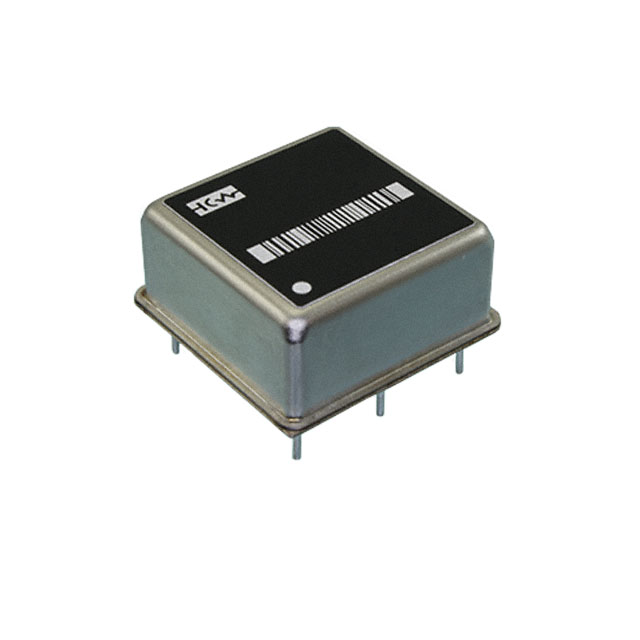

OD100LP-61005CV-010.0M
ActiveConnor Winfield
OSC VCOCXO 10.0MHZ 5.0V CMOS TH
OD100LP-61005CV-010.0M
ActiveConnor Winfield
OSC VCOCXO 10.0MHZ 5.0V CMOS TH
Description
General part information
OD100LP-61005CV-010.0M
10 MHz VCOCXO CMOS Oscillator 5V 6-DIP (0.750", 19.05mm), 5 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | OD100LP-61005CV-010.0M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 700 mA |
| Frequency | 10 MHz |
| Frequency Stability | 10 ppb |
| Height - Seated (Max) | 12.7 mm |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package Features | 5 Leads |
| Package Length | 0.75 in |
| Package Name | 6-DIP |
| Package Width | 19.05 mm |
| Size / Dimension Length | 1 in |
| Size / Dimension Width | 1 in |
| Type | VCOCXO |
| Voltage - Supply | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
