966206-2000-AR-PR

Active

3M (TC)

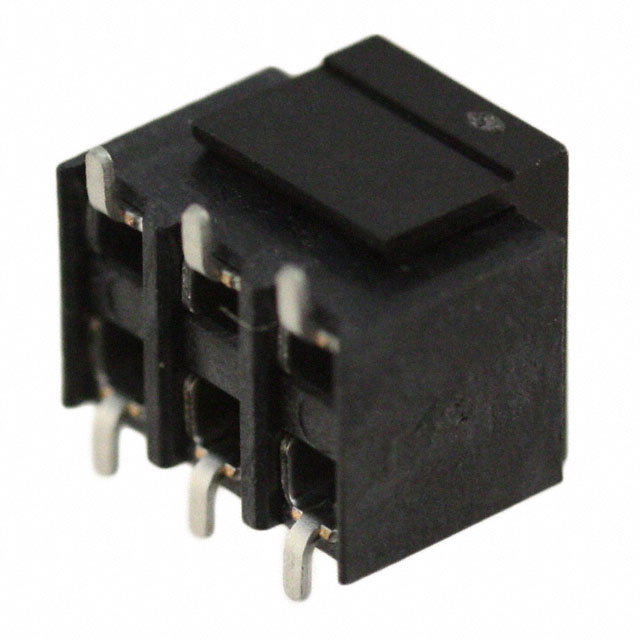

CONN RCPT 6POS 0.1 GOLD SMD

Search across all available documentation for this part.

Active

3M (TC)

CONN RCPT 6POS 0.1 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	966206-2000-AR-PR

Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1.02 Ám
Contact Finish Thickness - Post	40 Áin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	1000 VDC

Part	Insulation Height	Insulation Height	Fastening Type	Current Rating (Amps)	Contact Type	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Shape	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Number of Rows	Number of Positions	Number of Positions Loaded	Insulation Color	Contact Finish - Post	Mounting Type	Contact Finish Thickness - Mating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Length - Post	Contact Length - Post
3M (TC) 966206-2000-AR-PR	0.197 in	5 mm	Push-Pull	2 A	Female Socket	Copper Alloy	0.1 in	2.54 mm	Thermoplastic	Square	UL94 V-0	2.54 mm	0.1 in	Gold	Solder	1.02 Ám	40 Áin	Receptacle Bottom or Top Entry	2	6	All	Black	Tin	Surface Mount	Flash	Pick and Place	-25 °C	105 ░C	1000 VDC
3M (TC) 966206-6702-AR	0.197 in	5 mm	Push-Pull	2 A	Female Socket	Copper Alloy	0.1 in	2.54 mm	Thermoplastic	Square	UL94 V-0	2.54 mm	0.1 in	Gold	Solder	1.02 Ám	40 Áin	Receptacle Bottom or Top Entry	2	6	All	Black	Tin	Through Hole	Flash		-25 °C	105 ░C	1000 VDC	0.118 in	3 mm
3M (TC) 966206-2000-AR-TP	0.197 in	5 mm	Push-Pull	2 A	Female Socket	Copper Alloy	0.1 in	2.54 mm	Thermoplastic	Square	UL94 V-0	2.54 mm	0.1 in	Gold	Solder	1.02 Ám	40 Áin	Receptacle Bottom or Top Entry	2	6	All	Black	Tin	Surface Mount	Flash		-25 °C	105 ░C	1000 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
