1619473
ObsoletePhoenix Contact
CONN PLUG HSG MALE 12POS INLINE
1619473
ObsoletePhoenix Contact
CONN PLUG HSG MALE 12POS INLINE
Description
General part information
1619473

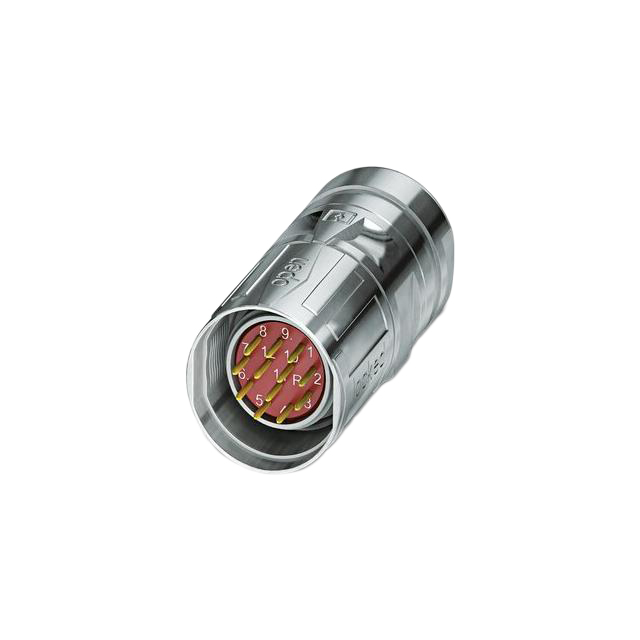

12 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
Technical Specifications
Parameters and characteristics for this part
| Specification | 1619473 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 1 mm |
| Contact Type | Crimp |
| Fastening Type | Push-Twist |
| Features | Coupling Nut, Backshell |
| Housing Color | Silver |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Shell Material | Metal |
| Shell Size - Insert | M23-12 |
| Shielding | Shielded |
| Type | For Male Pins |
