SC2506-100
ObsoleteSignal Transformer
FIXED IND 10UH 1.1A 240 MOHM SMD
SC2506-100
ObsoleteSignal Transformer
FIXED IND 10UH 1.1A 240 MOHM SMD
Description
General part information
SC2506-100

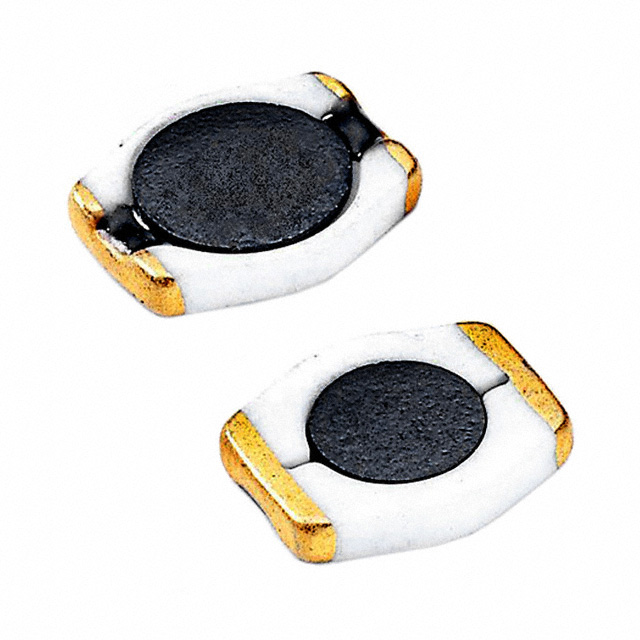

10 µH Unshielded Inductor 1.1 A 240mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SC2506-100 |
|---|---|
| Current - Saturation (Isat) | 1 A |
| Current Rating | 1.1 A |
| DC Resistance (DCR) (Max) | 240 mOhm |
| Height - Seated (Max) | 0.065 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.364 in |
| Size / Dimension Width | 0.31 in |
| Tolerance | 20 % |
