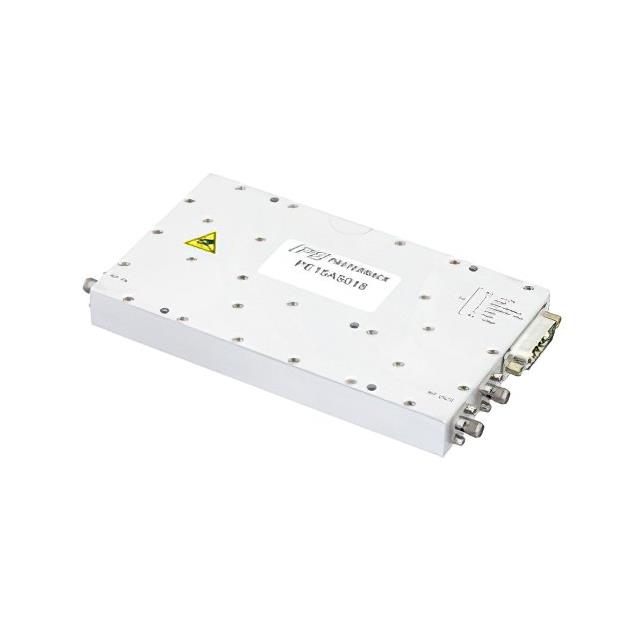

PE15A5018
ActivePasternack
55 DB GAIN, 14 WATT P1DB, 2.3 GH
PE15A5018
ActivePasternack
55 DB GAIN, 14 WATT P1DB, 2.3 GH
Description
General part information
PE15A5018
RF Amplifier IC Radar 2.3GHz ~ 2.7GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A5018 |
|---|---|
| Current - Supply | 400 mA |
| Frequency (Max) | 2.7 GHz |
| Frequency (Min) | 2.3 GHz |
| Gain | 55 dB |
| Mounting Type | Chassis Mount |
| P1dB | 41.5 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | Radar |
| Voltage - Supply | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
