TR2/S520-V-8-R

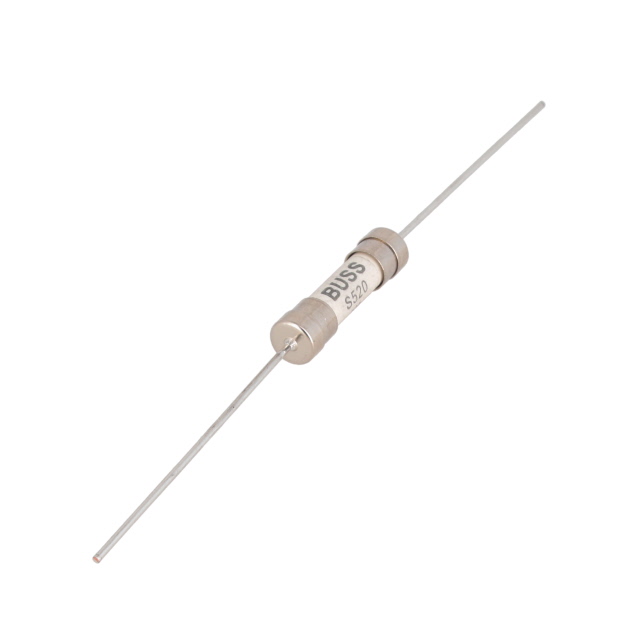

8 A 420 V AC DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
Technical Specifications
Parameters and characteristics for this part
| Specification | TR2/S520-V-8-R |
|---|---|
| Approval Agency | TUV, UR |
| Breaking Capacity | 1.5 kA |
| Current Rating | 8 A |
| DC Cold Resistance | 0.009 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 104 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case Interfaces | Axial |
| Package Features | Axial |
| Package Height | 0 mm |
| Package Length | 5 mm |
| Package Name | 5mm x 20mm |
| Package Width | 20 mm |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.236 in |
| Size / Dimension Length | 0.831 in |
| Voltage Rating - AC | 420 VAC |
