Description

General part information

HSE08-505028

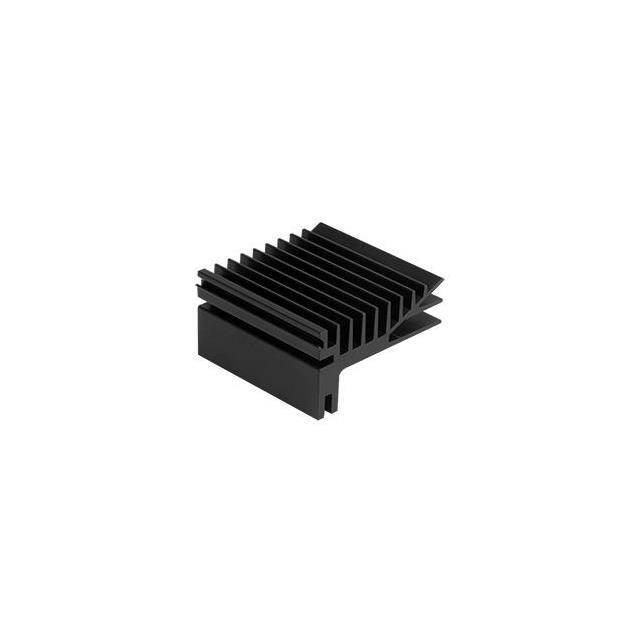

Heat Sink TO-218, TO-220 Aluminum Alloy 10.53W @ 75°C Board Level

Technical Specifications

Parameters and characteristics for this part

SpecificationHSE08-505028
Attachment MethodClip
Fin Height1.969 in
Length1.969 in
MaterialAluminum Alloy
Material FinishBlack Anodized
Package CooledTO-220, TO-218
Power Dissipation10.53 W
ShapeRectangular, Angled Fins
Thermal Resistance2.7 °C/W, 7.13 °C/W
TypeBoard Level
Width1.102 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
