2318967-2
ActiveTE Connectivity AMP Connectors

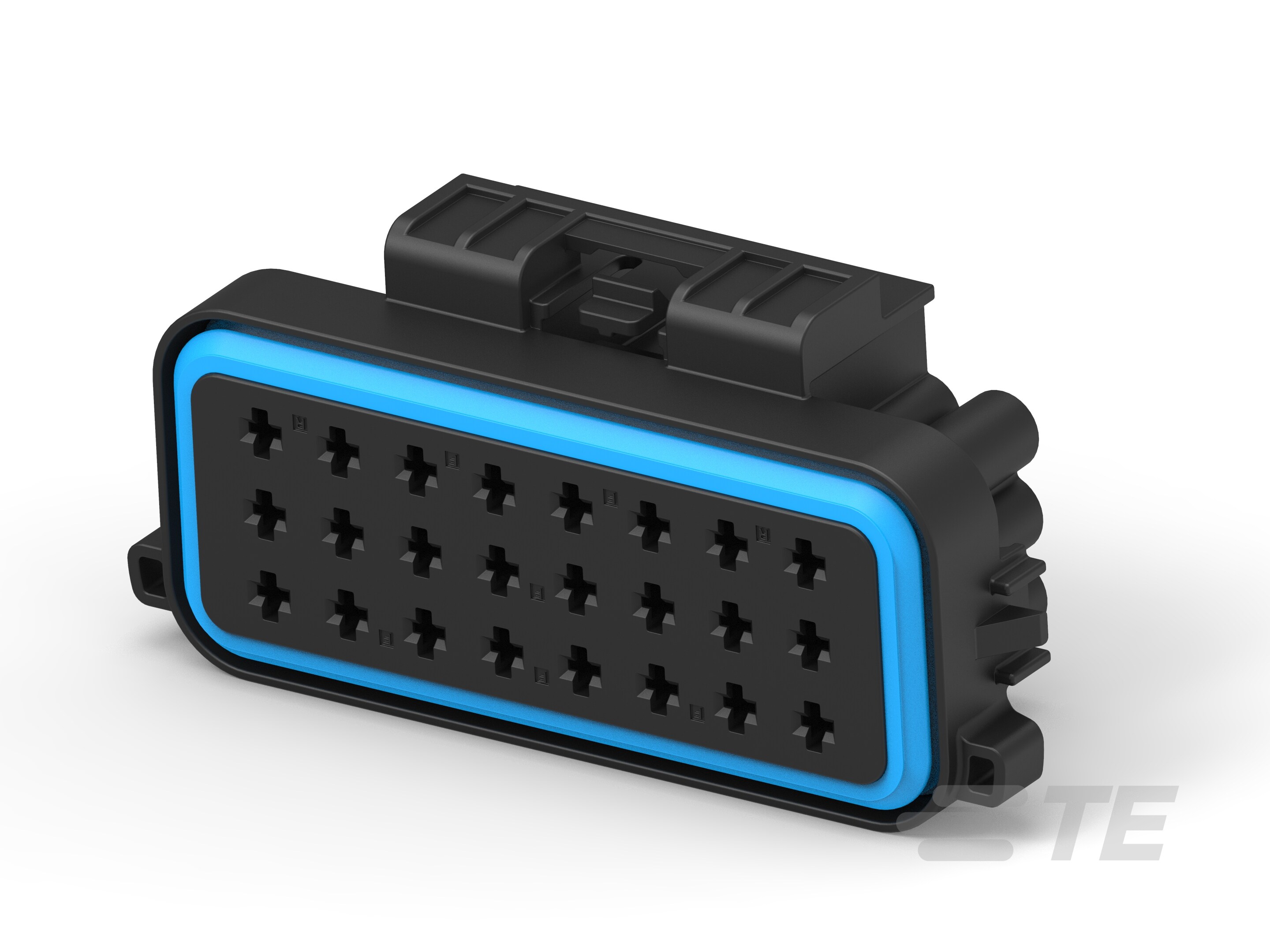

24POS,AMP MCP 2.8,REC HSG ASSY,SLD
2318967-2
ActiveTE Connectivity AMP Connectors
24POS,AMP MCP 2.8,REC HSG ASSY,SLD
Description
General part information
2318967-2
Others, Mini ATM Fuse, 12 Fuses (Maximum), 6 Fuses (Minimum), Micro Relay, 2 Relays (Maximum), 0 Relays (Minimum), 24 Position, Other Hard Wired Boxes
Technical Specifications
Parameters and characteristics for this part
| Specification | 2318967-2 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 24 pos |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.319 in |
| Row Spacing | 0.307 in |
