4-174639-0
ActiveTE Connectivity AMP Connectors
CONN RCPT 10POS 0.049 TIN SMD
4-174639-0
ActiveTE Connectivity AMP Connectors
CONN RCPT 10POS 0.049 TIN SMD
Description
General part information
4-174639-0

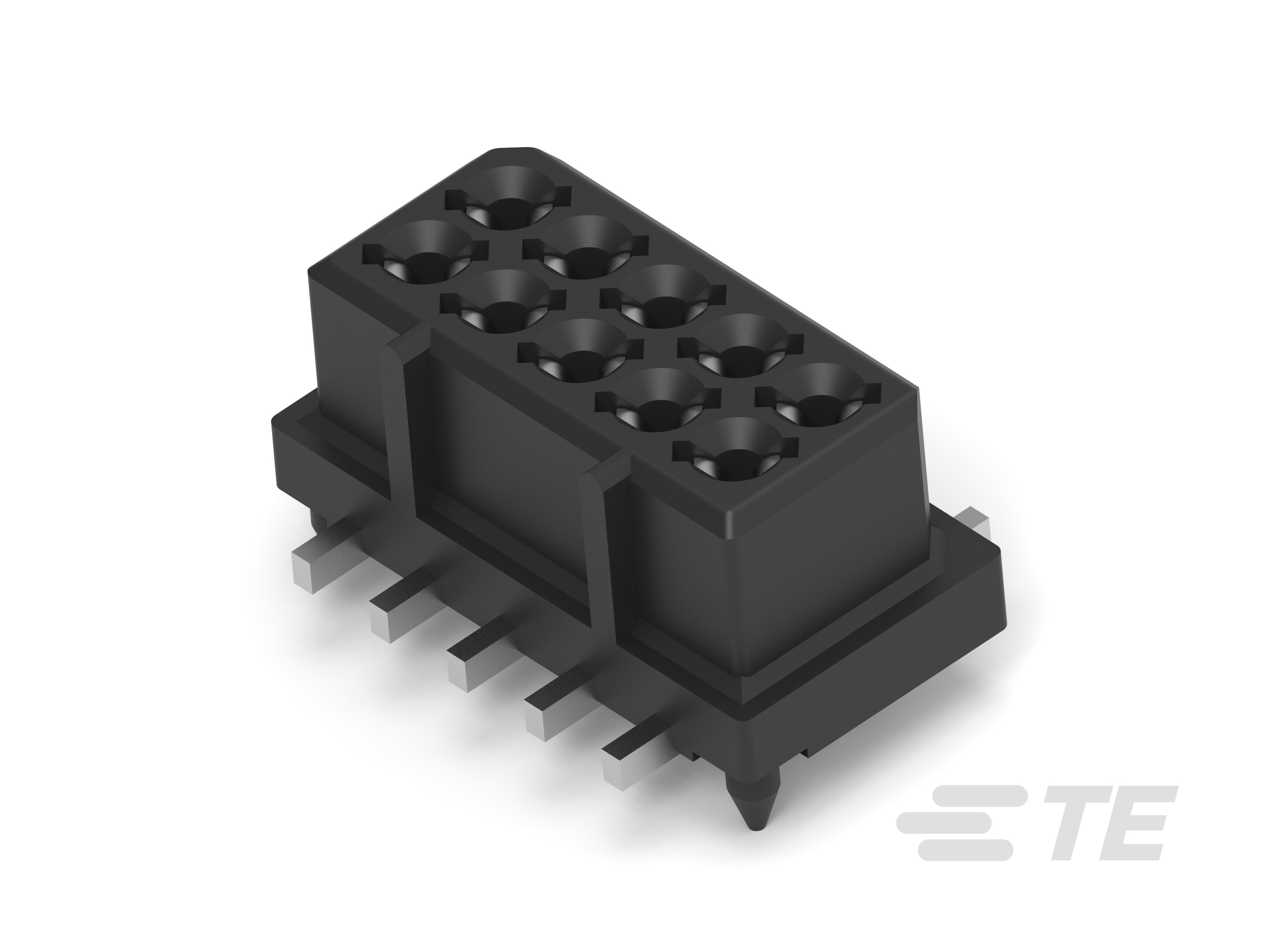

PCB Mount Receptacle, Vertical, Board-to-Board, 10 Position, 1.25 mm [.049 in] Centerline, Tin (Sn), Surface Mount, Signal, Black, Bag
Technical Specifications
Parameters and characteristics for this part
| Specification | 4-174639-0 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 31.5 µin |
| Contact Type | Forked |
| Current Rating | 0.5 A |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.134 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch - Mating | 0.049 in |
| Row Spacing - Mating | 0.049 in |
| Style | Board |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
