8-1437719-4
ActiveTE Connectivity AMP Connectors

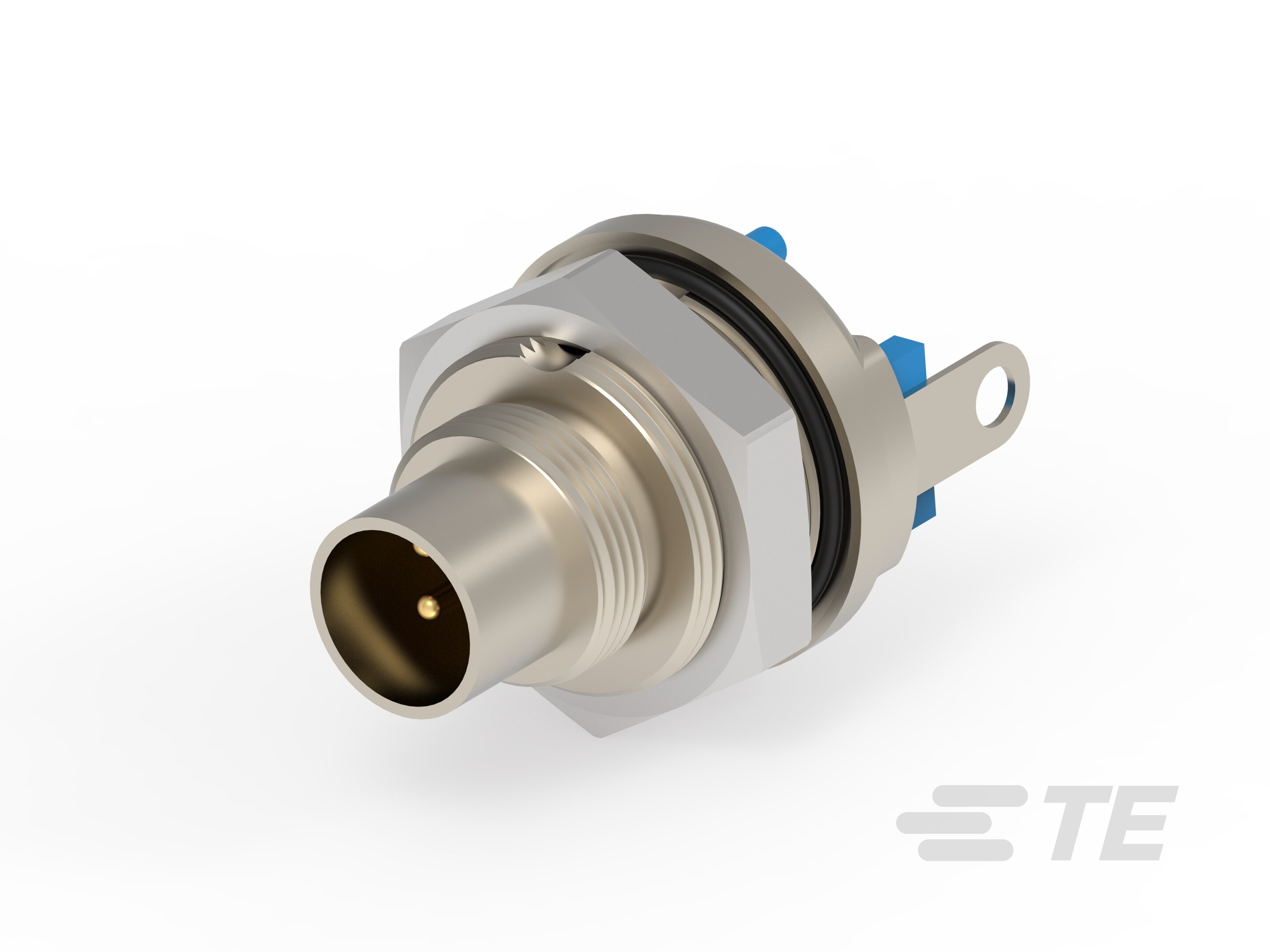

T01-0580-P04-MALE REC PANEL MOUNT SOLDER
8-1437719-4
ActiveTE Connectivity AMP Connectors
T01-0580-P04-MALE REC PANEL MOUNT SOLDER
Description
General part information
8-1437719-4
4 Position Circular Connector, Wire-to-Board, Sealable, Signal, Panel Mount, Reverse Gender, Nickel, CuZn, PBT, Triad 01 Panel/PCB Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-1437719-4 |
|---|---|
| Connector Type | Male Pins, Plug |
| Current Rating | 3 A |
| Fastening Type | Threaded |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Tribor |
| Shell Material | Brass |
| Shielding | Shielded |
| Termination | Solder Cup |
| Voltage Rating | 60 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Datasheet
T01 MALE CONN.PANEL MNT. SOLDER VER. 4POS. T01 STIFTSTECKER,EINBAU, LOETVERS. 4POL.
T01 MALE PLUG CONN. PANEL MNT. SOLDER VER. 3-8 POS. 180 DGR. T01 STIFTSTECKER,EINBAU,LOETVERS. 3-8 POL. 180 GRAD
C_8-1437719-4_A1.pdf
C_8-1437719-1_A2.pdf
M8 / M12 Connector System Catalog
Product Specification M8M12
8-1437719-4 | Datasheet
