KITTYPE1800LF
ActiveKYOCERA AVX
CAP KIT THIN FILM 1-4.7PF 600PCS
KITTYPE1800LF
ActiveKYOCERA AVX
CAP KIT THIN FILM 1-4.7PF 600PCS
Description
General part information
KITTYPE1800LF

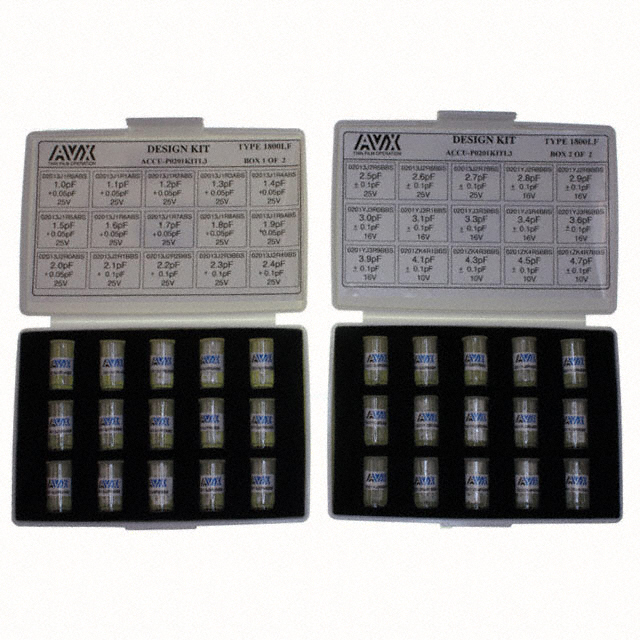

Thin Film Capacitor Kit 1pF ~ 4.7pF 25 ~ 50V Surface Mount 600 Pieces (30 Values - 20 Each)
Technical Specifications
Parameters and characteristics for this part
| Specification | KITTYPE1800LF |
|---|---|
| Applications | High Frequency, RF, Microwave |
| Capacitance Range (Max) | 4.7 pF |
| Capacitance Range (Min) | 1 pF |
| Features | High Q, Low Loss |
| Kit Type | Thin Film |
| Mounting Type | Surface Mount |
| Packages Included | 0201 (0603 Metric) |
| Quantity | 600 pcs |
| Quantity per Value | 20 Each |
| Quantity Values | 30 Values |
| Tolerance | ±0.05pF, ±0.1pF |
| Tolerance | 0.05 pF, 0.1 pF |
| Voltage - Rated (Max) | 50 V |
| Voltage - Rated (Min) | 25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
