704.918.4

Active

EAO

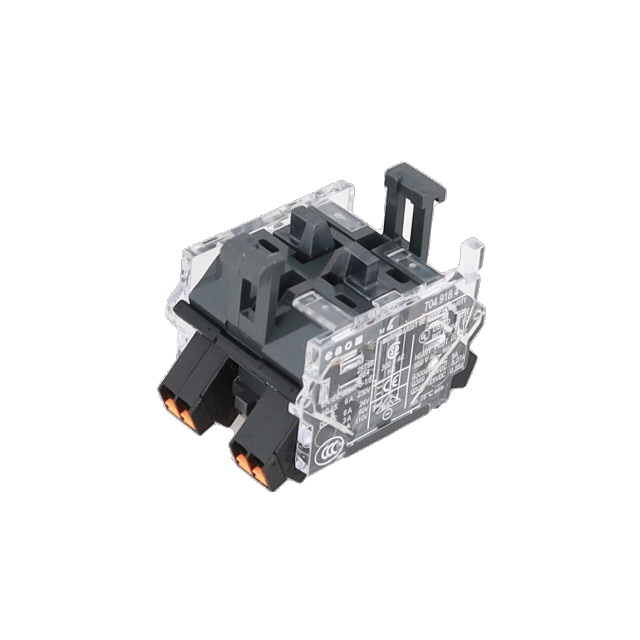

MICROSWITCH, SNAP ACTION, DPST-NC, SPRING CLAMP, 6 A

Search across all available documentation for this part.

Active

EAO

MICROSWITCH, SNAP ACTION, DPST-NC, SPRING CLAMP, 6 A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	704.918.4	704.918 Series

(Select First, Then Apply Filters) Compatible Series	04, EAO	04, EAO
Circuit	DPST-NC	DPST-NO/NC, DPST-NO, SPST-NC, SPST-NO, DPST-NC
Contact Rating @ Voltage	6 A, 250 VAC	6 - 500 A
Requires	Switch Body	Switch Body
Termination Style	Spring Terminal	Spring Terminal

MICROSWITCH, SNAP ACTION, SPST-NO, SPST-NC, SPRING CLAMP, 6 A

Part	(Select First, Then Apply Filters) Compatible Series	Contact Rating @ Voltage	Termination Style	Requires	Circuit
EAO 704.918.5	04, EAO	6 A, 250 VAC	Spring Terminal	Switch Body	DPST-NO/NC
EAO 704.918.3	04, EAO	6 A, 250 VAC	Spring Terminal	Switch Body	DPST-NO
EAO 704.918.2	04, EAO	6 A, 250 VAC	Spring Terminal	Switch Body	SPST-NC
EAO 704.918.1	04, EAO	6 A, 250 VAC	Spring Terminal	Switch Body	SPST-NO
EAO 704.918.4	04, EAO	6 A, 250 VAC	Spring Terminal	Switch Body	DPST-NC
EAO 704.918.4FS	04, EAO	10 A, 500 VAC	Spring Terminal	Switch Body	DPST-NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block DPST-NC 6A @ 250VAC

Technical documentation and resources
