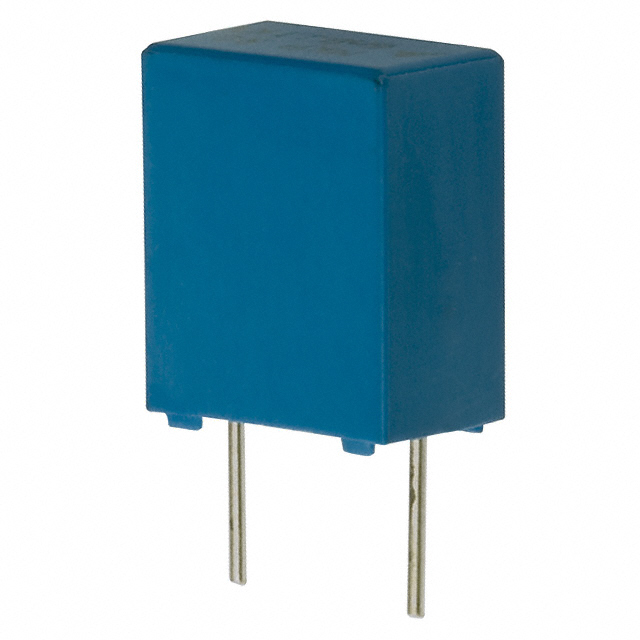

Specification	B32620A3104J289

Applications	High Pulse, DV/DT
Capacitance	0.1 µF
Dielectric Material	Metallized - Stacked, Polypropylene (PP)
Height - Seated (Max)	0.472 in
Lead Spacing	0.295 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Size / Dimension Length	0.406 in
Size / Dimension Width	0.236 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	140 V
Voltage Rating - DC	250 VDC
