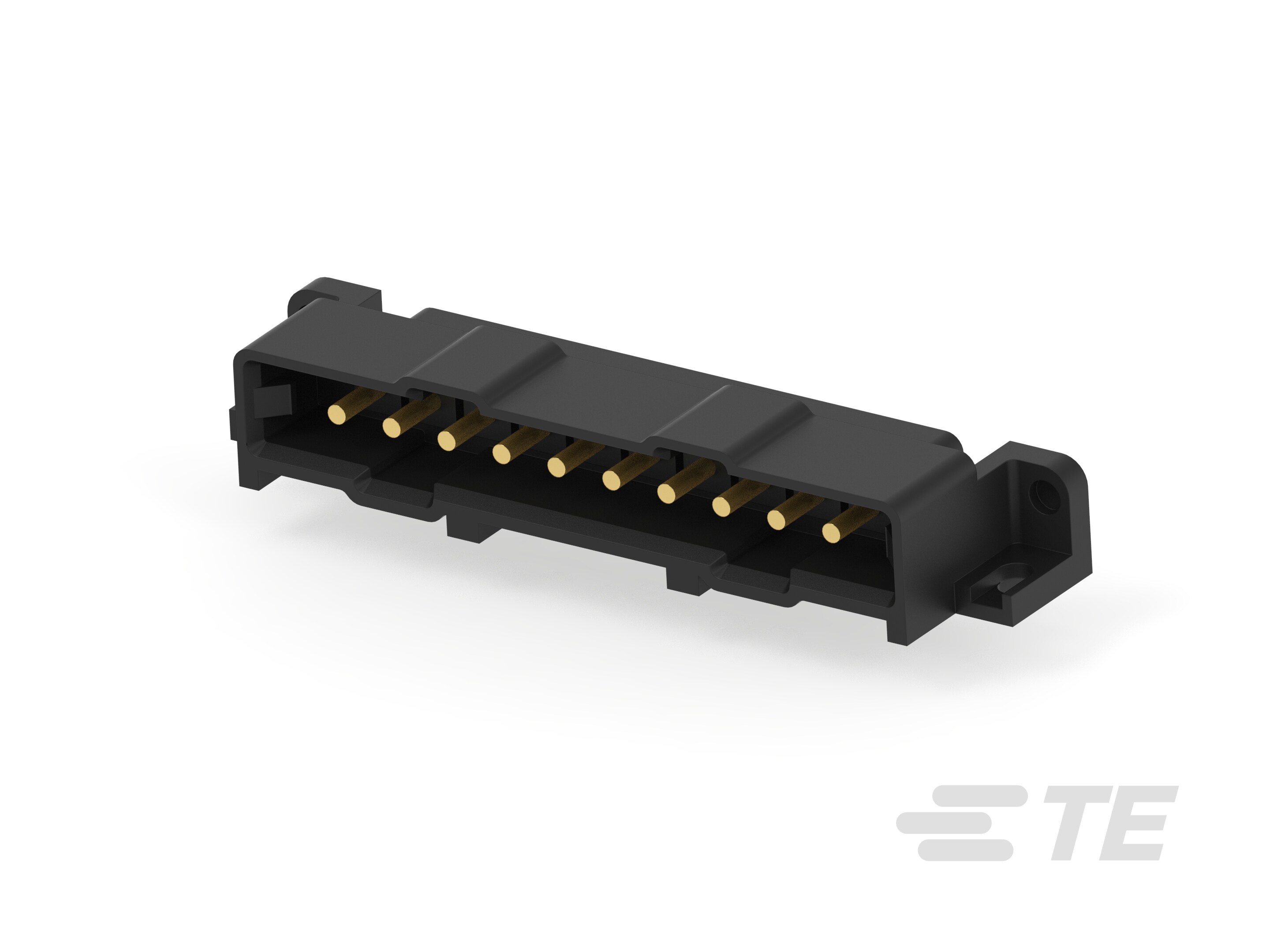

MMATE PIN HDR ASSY,10P LF-207398-7

207398-7

Active
TE Connectivity AMP Connectors

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 5 MM, 1 ROWS, 10 CONTACTS, THROUGH HOLE RIGHT ANGLE

Find alt
MMATE PIN HDR ASSY,10P LF-207398-7

207398-7

Active
TE Connectivity AMP Connectors

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 5 MM, 1 ROWS, 10 CONTACTS, THROUGH HOLE RIGHT ANGLE

Find alt

Description

General part information

207398-7

PCB Mount Header, Right Angle, Wire-to-Board, 10 Position, 5 mm [.197 in] Centerline, Fully Shrouded, Gold (Au), Through Hole - Solder, Power & Signal

Technical Specifications

Parameters and characteristics for this part

Specification207398-7
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating30 µin
Contact Length - Post0.192 in
Contact MaterialBrass
Contact ShapeCircular
Contact TypeMale Pin
Current Rating7.5 A
Fastening TypeLatch Holder
FeaturesMounting Flange
Insulation ColorBlack, Red
Insulation Height0.5 in
Insulation MaterialNylon, Polyamide (PA)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions10
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)130 °C
Operating Temperature (Min)-55 °C
Pitch - Mating0.197 in
ShroudingShrouded - 4 Wall
StyleBoard, Board or Cable
TerminationSolder
Voltage Rating600 V
