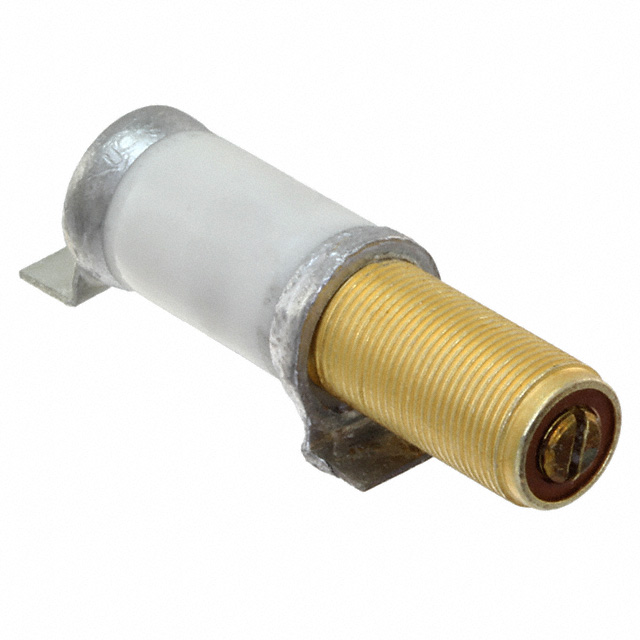

AJ55HV
ActiveKnowles Syfer
CAP TRIMMER 1.5-55PF 600V SMD
AJ55HV
ActiveKnowles Syfer
CAP TRIMMER 1.5-55PF 600V SMD
Description
General part information
AJ55HV
1.5 ~ 55pF Trimmer Capacitor 600 V Side Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | AJ55HV |
|---|---|
| Adjustment Type | Side |
| Capacitance Range (Max) | 55 pF |
| Capacitance Range (Min) | 1.5 pF |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features | General Purpose |
| Height - Seated (Max) | 25.4 mm |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Q | 780 |
| Size / Dimension Diameter | 0.3 in |
| Voltage - Rated | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
