LCCA30525-FT1.5
ActivePasternack
COAX CBL BNC TO TNC 18"
LCCA30525-FT1.5
ActivePasternack
COAX CBL BNC TO TNC 18"
Description
General part information
LCCA30525-FT1.5

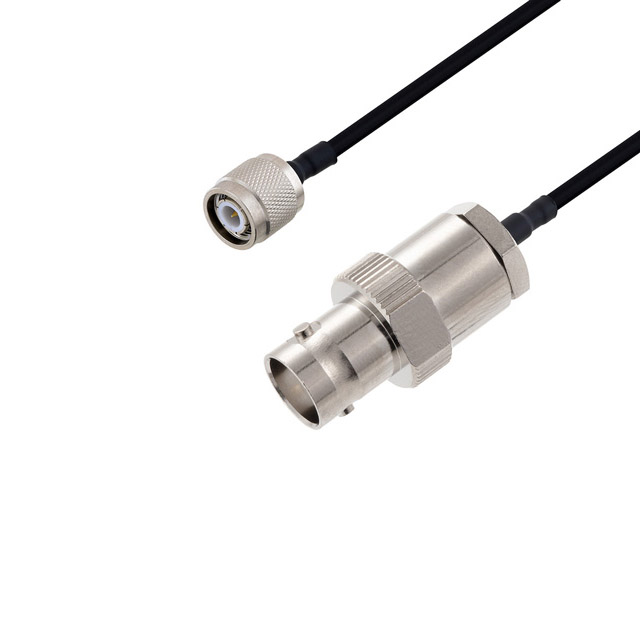

Cable Assembly Coaxial BNC to TNC LC141TBJ 18.00" (457.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30525-FT1.5 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC141TBJ |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 2 GHz |
| Length | 18 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | BNC, TNC |
