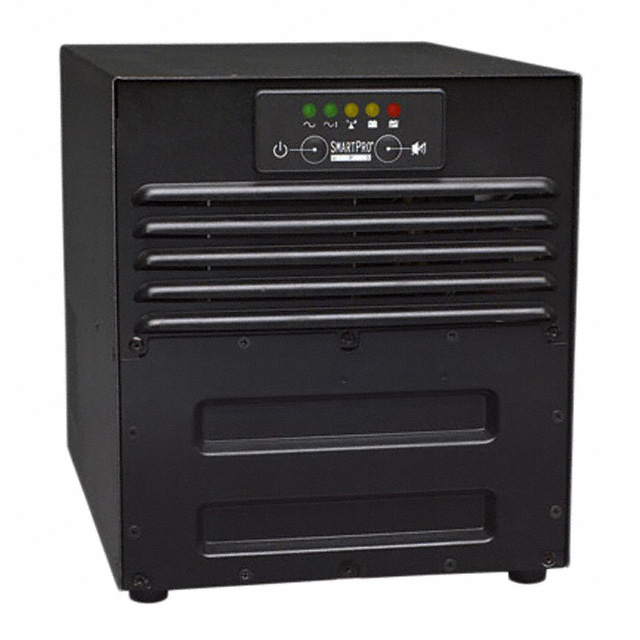

SMART700DV
ActiveEaton Tripp Lite
UNINTERRUPTIBLE POWER SUPPLY (UPS), TOWER, 6 OUTLETS, 700VA / 450W, 282 V, 120 VAC, 22 MIN
SMART700DV
ActiveEaton Tripp Lite
UNINTERRUPTIBLE POWER SUPPLY (UPS), TOWER, 6 OUTLETS, 700VA / 450W, 282 V, 120 VAC, 22 MIN
Description
General part information
SMART700DV
UNINTERRUPTIBLE POWER SUPPLY (UPS), TOWER, 6 OUTLETS, 700VA / 450W, 282 V, 120 VAC, 22 MIN
Technical Specifications
Parameters and characteristics for this part
| Specification | SMART700DV |
|---|---|
| AC Outlets (Count) | 6 count |
| Applications | Network, Single Phase |
| Approval Agency | CE, FCC, UL, CSA |
| Backup Time - Max Load | 22.2 minutes |
| Cord Length | 6 ft |
| Form | Tower |
| Height | 10.197 in |
| Input Connector | NEMA 5-15P, C14 |
| Media Lines Protected | RS-232 |
| Output Connector | NEMA 5-15R |
| Output Connector Quantity (NEMA 5-15R) | 6 |
| Power - Rated (VA) | 700 VA |
| Power - Rated (W) | 450 W |
| Size / Dimension Length | 12.52 in |
| Size / Dimension Width | 9.016 in |
| Type | Line Interactive (Input Regulation) |
| Voltage - Input | 120 VAC |
| Voltage - Output | 110 V, 120 V, 115 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
