UTSX61419PX
ActiveAmphenol Aerospace Operations
PLUG, WITHOUT BACKSHELL, FOR 19
UTSX61419PX
ActiveAmphenol Aerospace Operations
PLUG, WITHOUT BACKSHELL, FOR 19
Description
General part information
UTSX61419PX

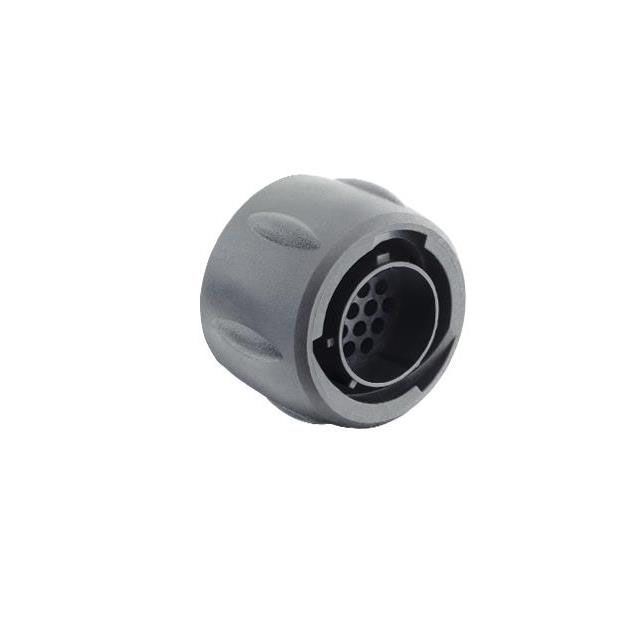

19 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut, UV Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | UTSX61419PX |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant, Coupling Nut |
| Housing Color | Black |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 19 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | X |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert (Maximum) | 19 |
| Shell Size - Insert (Minimum) | 14 S |
| Shielding | Unshielded |
| Type | For Male Pins |
