HHR-370AHF7
ActivePanasonic Energy
BATTERY PACK NIMH 8.4V L-FAT A
HHR-370AHF7
ActivePanasonic Energy
BATTERY PACK NIMH 8.4V L-FAT A
Description
General part information
HHR-370AHF7

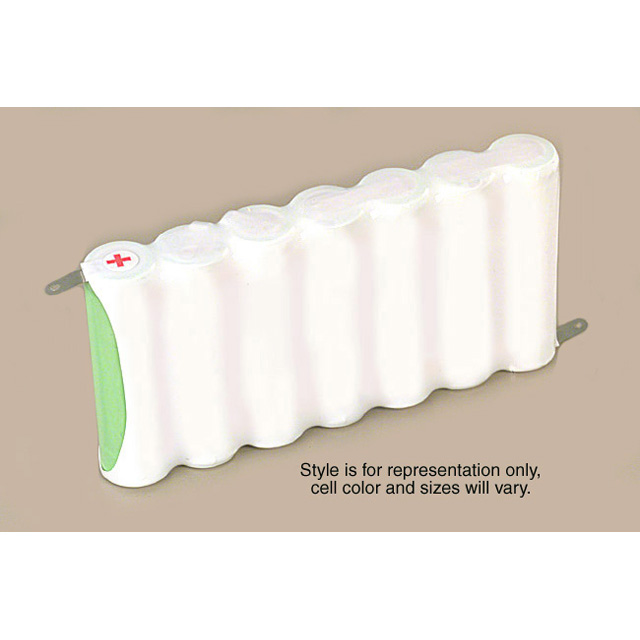

L-Fat A 8.4 V Nickel Metal Hydride Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | HHR-370AHF7 |
|---|---|
| Battery Cell Size | L-Fat, L-Fat A, A |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity (Charge) | 3.5 Ah |
| Note | Battery packs made with NIMH cells include a thermostat. |
| Number of Cells | 7 |
| Rechargeability | Yes |
| Size / Dimension Height | 2.64 in |
| Size / Dimension Length | 5.02 in |
| Size / Dimension Width | 0.72 in |
| Structure | Side to Side |
| Structure Cells | 7 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 8.4 VDC |
| Weight | 419.57 g |
