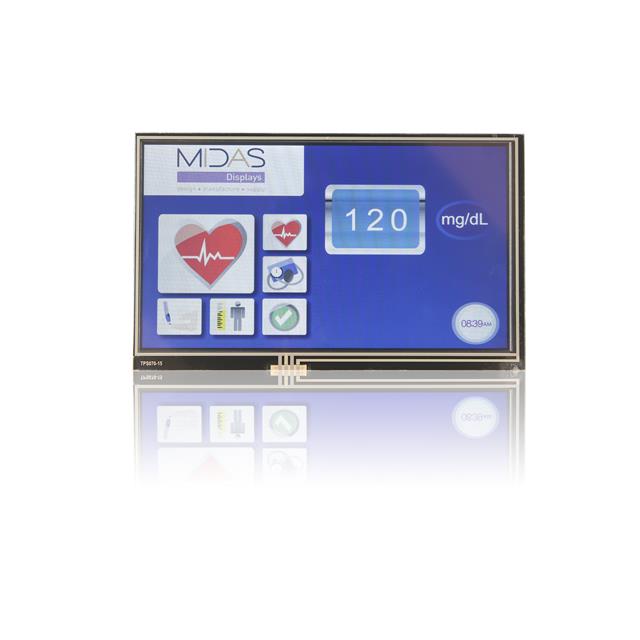

MDT7000R
ActiveMidas Displays
7.0" TFT, 800X480 RESOLUTION
MDT7000R
ActiveMidas Displays
7.0" TFT, 800X480 RESOLUTION
Description
General part information
MDT7000R
Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color RGB 7" (177.80mm) 800 x 480
Technical Specifications
Parameters and characteristics for this part
| Specification | MDT7000R |
|---|---|
| Background Color | Black |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | HX8264-D |
| Diagonal Screen Size | 7 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 800 pixels |
| Dot Pixels (Vertical) | 480 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | RGB |
| Touchscreen | Resistive |
| Viewing Area Height | 86.92 mm |
| Viewing Area Width | 155.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
