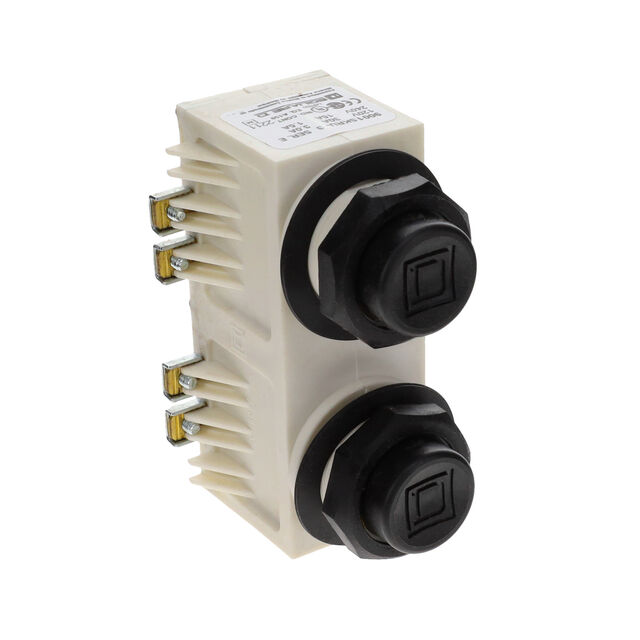

9001SKRU3
ActiveSCHNEIDER ELECTRIC
PUSHBUTTON 600VAC 10AMP 30MM SKY
9001SKRU3
ActiveSCHNEIDER ELECTRIC
PUSHBUTTON 600VAC 10AMP 30MM SKY
Description
General part information
9001SKRU3
Pushbutton Switch Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001SKRU3 |
|---|---|
| Actuator Type | Dual, Round, Button |
| Color - Actuator/Cap | Black |
| Current Rating | 10 A |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Mechanical Life (Cycles) | 5000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 600 VAC |
