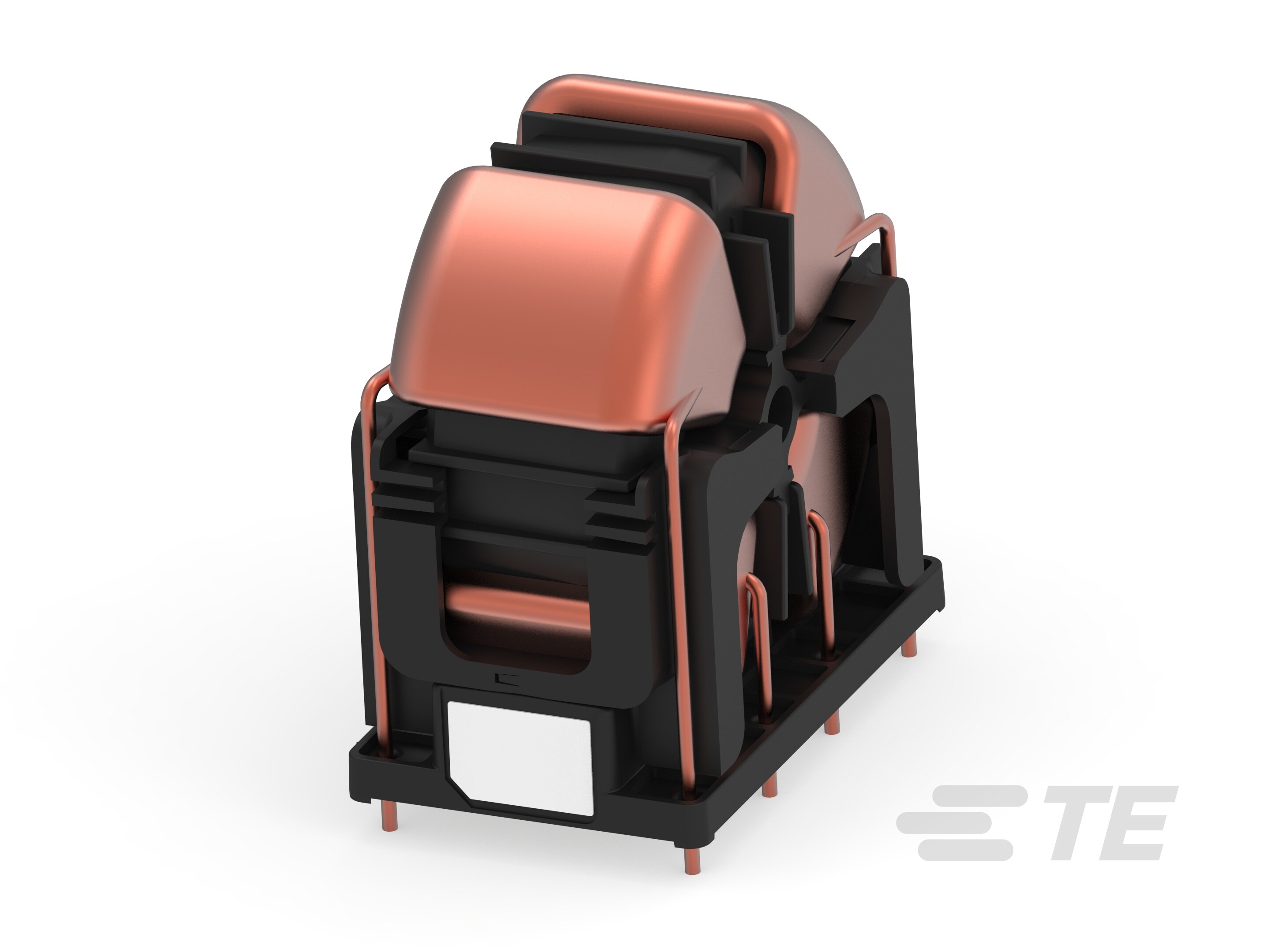

Specification	RV8541-32-S12

Approval Agency	UR
Current Rating (Max)	32 A
DC Resistance (DCR) (Max)	2.1 mOhm
Filter Type	Power Line
Height (Max)	2.35 in
Inductance	360 µH
Mounting Type	Through Hole
Number of Lines	4
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	Vertical
Package Leads	8 PC Pin
Package Name	Vertical
Pad Count	8 PC Pin
Pin Count	8
Size / Dimension Length	2.362 in
Size / Dimension Width	1.496 in
Voltage Rating - AC	530 V
Voltage Rating - DC	1 kV

Schaffner RV-Series Series

...

Part	Filter Type	DC Resistance (DCR) (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Package Leads	Package / Case	Package Name	Pin Count	Pad Count	Voltage Rating - DC	Inductance	Mounting Type	Voltage Rating - AC	Number of Lines	Current Rating (Max)	Size / Dimension Width	Size / Dimension Length	Height (Max)	Approval Agency	Size / Dimension Diameter
TE Connectivity AMP Connectors RV8540-40-S12	Power Line	1.3 mOhm	125 °C	-40 °C	8 PC Pin	Vertical	Vertical	8	8 PC Pin	1 kV	120 µH	Through Hole	530 V	4	40 A	1.496 in	2.362 in	2.35 in
TE Connectivity AMP Connectors RV8141-50-S01	Power Line	0.9 mOhm	125 °C	-40 °C	8 Leads		Horizontal		8 PC Pin	1 kV	230 µH	Through Hole	530 V	4	50 A			1.618 in	UR	2.602 in
TE Connectivity AMP Connectors RV8140-40-S11	Power Line	1.1 mOhm	125 °C	-40 °C	8 Leads		Horizontal		8 PC Pin	1 kV	120 µH	Through Hole	530 V	4	40 A			1.461 in		2.441 in
TE Connectivity AMP Connectors RV8540-25-S12	Power Line	3 mOhm	125 °C	-40 °C	8 PC Pin	Vertical	Vertical	8	8 PC Pin	1 kV	330 µH	Through Hole	530 V	4	25 A	1.496 in	2.362 in	2.35 in
TE Connectivity AMP Connectors RV8141-32-S01	Power Line	2.1 mOhm	125 °C	-40 °C	8 Leads		Horizontal		8 PC Pin	1 kV	630 µH	Through Hole	530 V	4	32 A			1.618 in	UR	2.602 in
TE Connectivity AMP Connectors RV8141-50-S03	Power Line	1.1 mOhm	125 °C	-40 °C	8 Leads		Horizontal		8 PC Pin	1 kV	330 µH	Through Hole	530 V	4	50 A			2.094 in	UR	2.602 in
TE Connectivity AMP Connectors RV8141-25-S13	Power Line	3.3 mOhm	125 °C	-40 °C	8 Leads		Horizontal		8 PC Pin	1 kV	840 µH	Through Hole	530 V	4	25 A			1.854 in	UR	2.441 in
TE Connectivity AMP Connectors RV8541-16-S16	Power Line	5.6 mOhm	125 °C	-40 °C	8 PC Pin	Vertical	Vertical	8	8 PC Pin	1 kV	560 µH	Through Hole	530 V	4	16 A	1.063 in	2.362 in	2.35 in	UR
TE Connectivity AMP Connectors RV8540-32-S06	Power Line	1.8 mOhm	125 °C	-40 °C	8 PC Pin	Vertical	Vertical	8	8 PC Pin	1 kV	170 µH	Through Hole	530 V	4	32 A	1.181 in	2.52 in	2.579 "
TE Connectivity AMP Connectors RV8541-25-S16	Power Line	2.4 mOhm	125 °C	-40 °C	8 PC Pin	Vertical	Vertical	8	8 PC Pin	1 kV	290 µH	Through Hole	530 V	4	25 A	1.063 in	2.362 in	2.35 in	UR
