RSSD25168A1R00KB06
ActiveVishay Dale
ADJ PWR RES 1 OHM 200W CHAS MT
RSSD25168A1R00KB06
ActiveVishay Dale
ADJ PWR RES 1 OHM 200W CHAS MT
Description
General part information
RSSD25168A1R00KB06

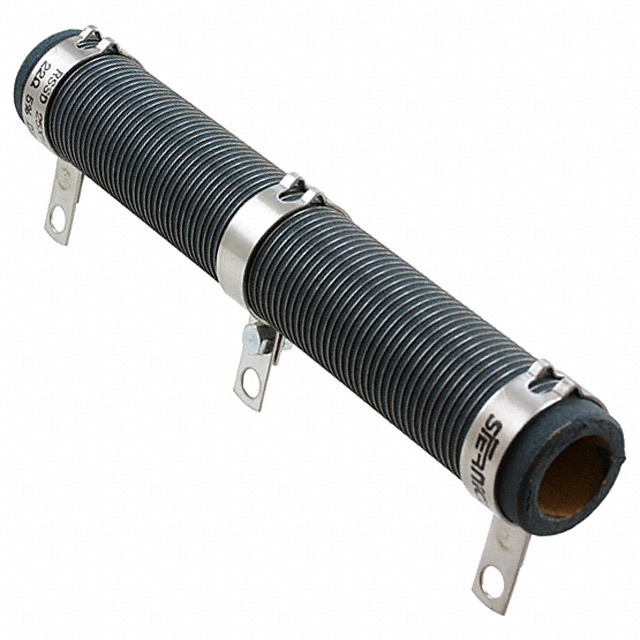

1 Ohms 200 W Slide Adjustable Power Resistor Chassis Mount 1.063" OD, 0.646" ID (27.00mm x 16.40mm) 6.614" (168.00mm) Length
Technical Specifications
Parameters and characteristics for this part
| Specification | RSSD25168A1R00KB06 |
|---|---|
| Adjustment Type | Slide |
| Diameter (Inner) | 0.646 in |
| Diameter (Length) | 27 mm |
| Diameter (Outer) | 1.063 in |
| Diameter (Width) | 16.4 mm |
| Length | 6.614 in |
| Mounting Type | Chassis Mount |
| Package Leads | 3 Leads |
| Package Name | Radial |
| Power (Watts) | 200 W |
| Resistance | 1 Ohm |
| Termination | Solder Lug |
| Tolerance | 10 % |
