ASSEMBLY,RECEPTACLE,EUROCARD,T-5650859-5

5650859-5

Active
TE Connectivity AMP Connectors

DIN 41612 CONNECTOR, 64 CONTACTS, RECEPTACLE, 2.54 MM, 2 ROW, A + B

Find alt
ASSEMBLY,RECEPTACLE,EUROCARD,T-5650859-5

5650859-5

Active
TE Connectivity AMP Connectors

DIN 41612 CONNECTOR, 64 CONTACTS, RECEPTACLE, 2.54 MM, 2 ROW, A + B

Find alt

Description

General part information

Eurocard Type B Series

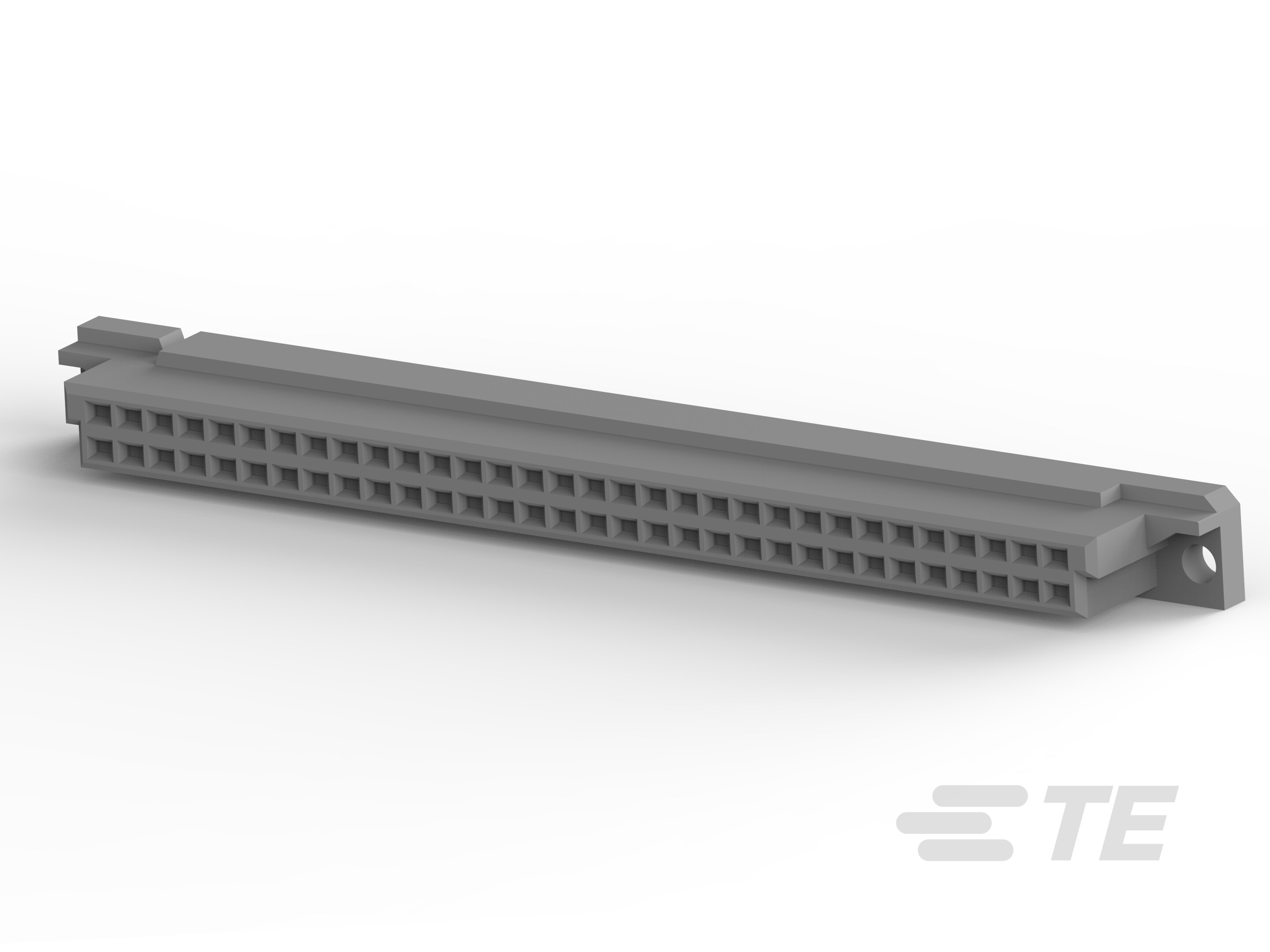

The 5650859-5 is a 64-position 2-row type-B vertical Eurocard Receptacle Assembly with gold-plated copper alloy contacts and a glass-filled polymer housing. It is suitable for use with printed circuit board.

Technical Specifications

Parameters and characteristics for this part

Specification5650859-5
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Level, Class2
Mounting TypeThrough Hole
Number of Positions64
Number of Positions LoadedAll
Number of Rows2
Pitch0.1 in
StyleB
TerminationSolder
