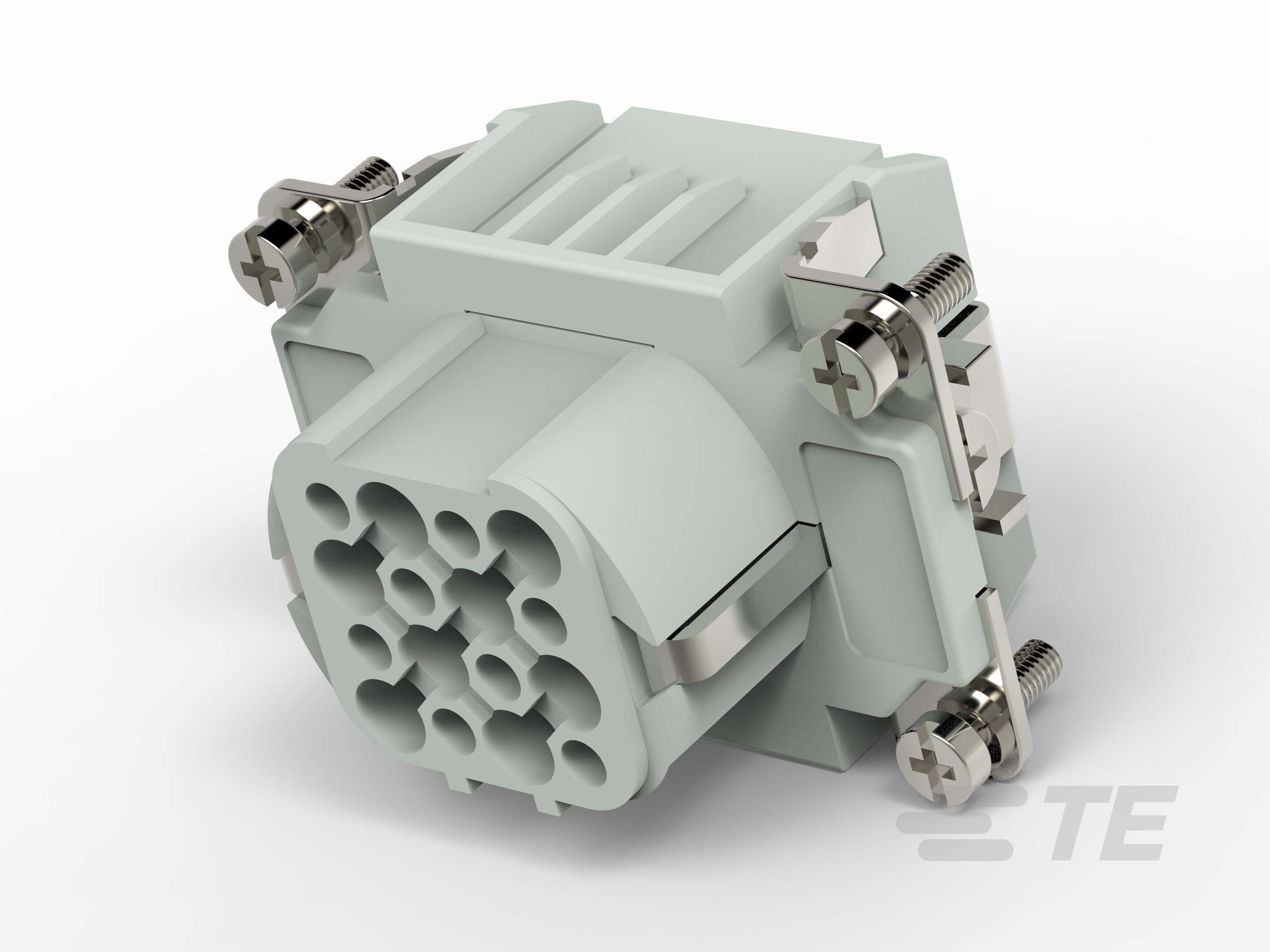

HDD-016-F-T2030162201-000

T2030162201-000

Active
TE Connectivity AMP Connectors

INSERT FEMALE 16POS+1GND CRIMP

Find alt
HDD-016-F-T2030162201-000

T2030162201-000

Active
TE Connectivity AMP Connectors

INSERT FEMALE 16POS+1GND CRIMP

Find alt

Description

General part information

T2030162201-000

Insert for Contacts, Socket, 16+PE Pole Configuration, Crimp, 26 – 14 AWG, 10 A, Power & Signal

Technical Specifications

Parameters and characteristics for this part

SpecificationT2030162201-000
Connector TypeInsert
Contact TypeCDF, DDF
Current Rating10 A
GenderFemale
Number of Positions16
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Position TypesGround
SizeH6B
Termination StyleCrimp
Voltage Rating250 V
