Description
General part information

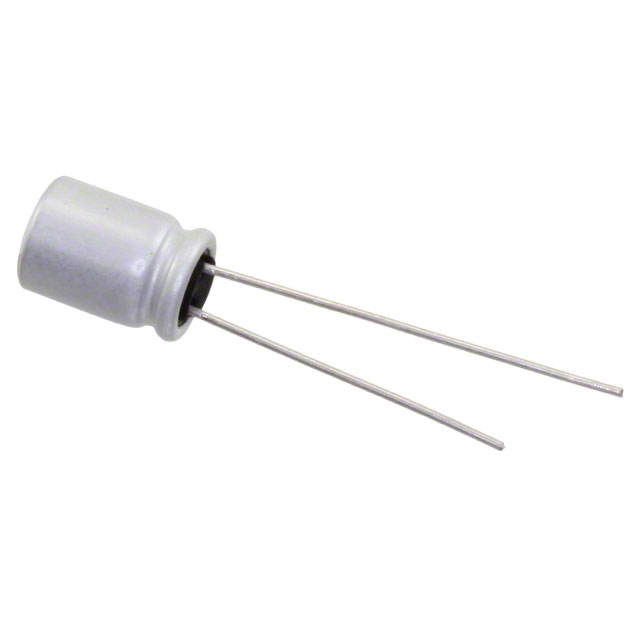

RNS1E150MDS1PX
15 µF 25 V Aluminum - Polymer Capacitors Radial, Can 49mOhm 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | RNS1E150MDS1PX |
|---|---|
| Applications | General Purpose |
| Capacitance | 15 µF |
| ESR (Equivalent Series Resistance) | 49 mOhm |
| Height - Seated (Max) | 0.433 in |
| Lead Spacing | 0.098 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Ripple Current | 2.2 A, 220 mA |
| Size / Dimension Diameter | 0.248 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 25 VAC |
