Description
General part information
RG303-SFRP-QM(QTY:5m)

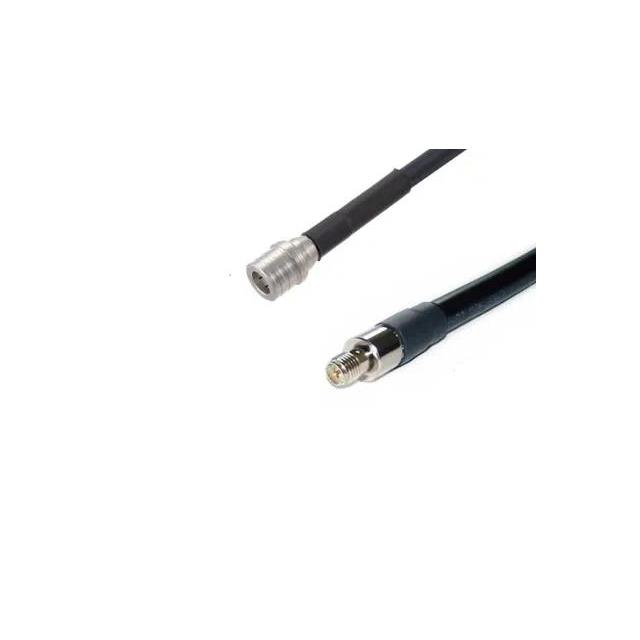

Cable Assembly Coaxial RP-SMA to QMA RG-303 196.9" (5.0m) 16.4'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG303-SFRP-QM(QTY:5m) |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | QMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 303 |
| Color | Brown |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 196.9 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | QMA, RP-SMA |
