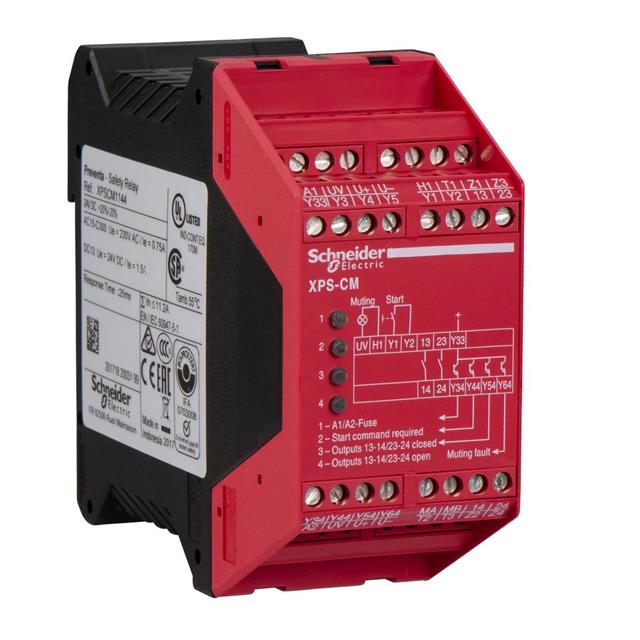

XPSCM1144
ObsoleteSCHNEIDER ELECTRIC
SAFETY RELAY, 24 VDC, DPST-NO, PREVENTA XPSCM SERIES, DIN RAIL, 1.5 A, SCREW
XPSCM1144
ObsoleteSCHNEIDER ELECTRIC
SAFETY RELAY, 24 VDC, DPST-NO, PREVENTA XPSCM SERIES, DIN RAIL, 1.5 A, SCREW
Description
General part information
XPSCM1144
SAFETY RELAY, 24 VDC, DPST-NO, PREVENTA XPSCM SERIES, DIN RAIL, 1.5 A, SCREW
Technical Specifications
Parameters and characteristics for this part
| Specification | XPSCM1144 |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | DPST-NO |
| Contact Rating (Current) | 11 A |
| Features | Lighted Indicator |
| Form A Count | 2 |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Termination Style | Screw Terminal |
