100220NP

Active

LAPP

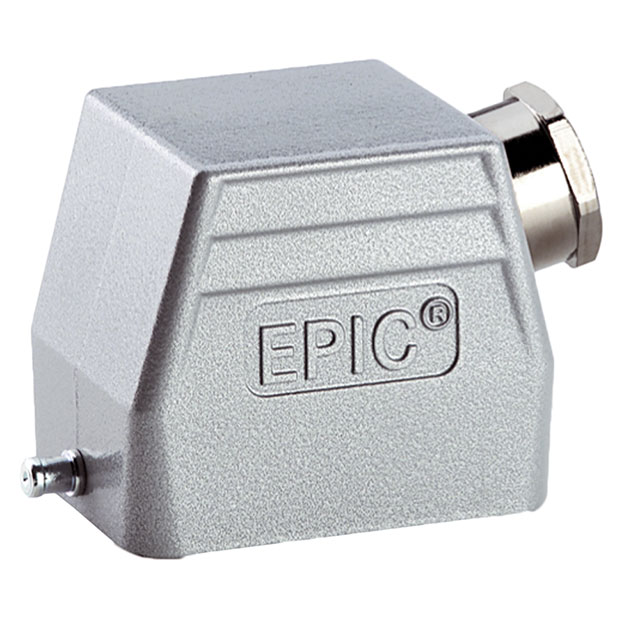

CONN HOOD HB6 SE NPT1/2

Search across all available documentation for this part.

Active

LAPP

CONN HOOD HB6 SE NPT1/2

Technical Specifications

Parameters and characteristics for this part

Specification	100220NP

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HB6
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.362 in
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	52 mm
Size / Dimension [z]	2.047 in
Style	Side Entry
Thread Size	NPT-1/2

CONN HOOD HB6 SE NPT1/2

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lock Location	Thread Size	Connector Type	Size	Housing Finish	Style	Ingress Protection	Housing Material	Housing Color
LAPP 100220NP	125 °C	-40 °C	1.693 in	52 mm	2.047 in	60 mm	2.362 in	43 mm	Locking Clip (1) on Base Bottom	NPT-1/2	Hood	HB6	Powder Coated	Side Entry	IP65 - Dust Tight, Water Resistant	Aluminum Alloy	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry NPT-1/2 HB6 IP65 - Dust Tight, Water Resistant
