ACH-11.0592MHZ-EK
ActiveAbracon LLC
XTAL OSC XO 11.0592MHZ HCMOS TTL
ACH-11.0592MHZ-EK
ActiveAbracon LLC
XTAL OSC XO 11.0592MHZ HCMOS TTL
Description
General part information
ACH-11.0592MHZ-EK

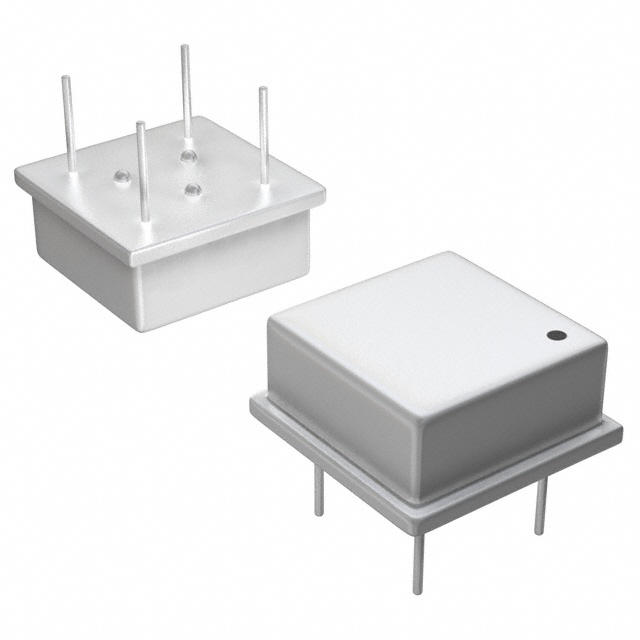

11.0592 MHz XO (Standard) HCMOS, TTL Oscillator 5V 8-DIP, 4 Leads (Half Size, Metal Can)
Technical Specifications
Parameters and characteristics for this part
| Specification | ACH-11.0592MHZ-EK |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 30 mA |
| Frequency | 11.0592 MHz |
| Frequency Stability | 30 ppm |
| Height - Seated (Max) | 0.252 in, 0.22 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | TTL, HCMOS |
| Package Leads | 4 Leads |
| Package Name | 8-DIP |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.5 in |
| Type | XO (Standard) |
| Voltage - Supply | 5 VDC |
