A17666-04

A17666-04

Active
Laird Technologies - Thermal Materials

THERM PAD 457.2X457.2MM BLUE

Find alt
A17666-04

A17666-04

Active
Laird Technologies - Thermal Materials

THERM PAD 457.2X457.2MM BLUE

Find alt

Description

General part information

A17666-04

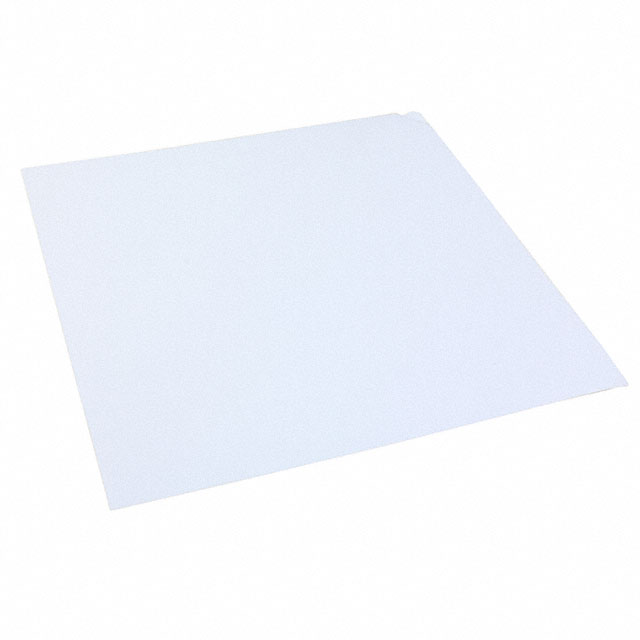

Thermal Pad Blue 457.20mm x 457.20mm Square Tacky - Both Sides

Technical Specifications

Parameters and characteristics for this part

SpecificationA17666-04
AdhesiveTacky - Both Sides
ColorBlue
MaterialSilicone Elastomer
Outline Length457.2 mm
Outline Width457.2 mm
ShapeSquare
Shelf Life24 Months
Shelf Life StartDate of Shipment
Thermal Conductivity2.8 W/m-K
Thickness0.04 in
TypeGap Filler Pad, Sheet

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

A17666-04 | Datasheet
