Description
General part information
202346

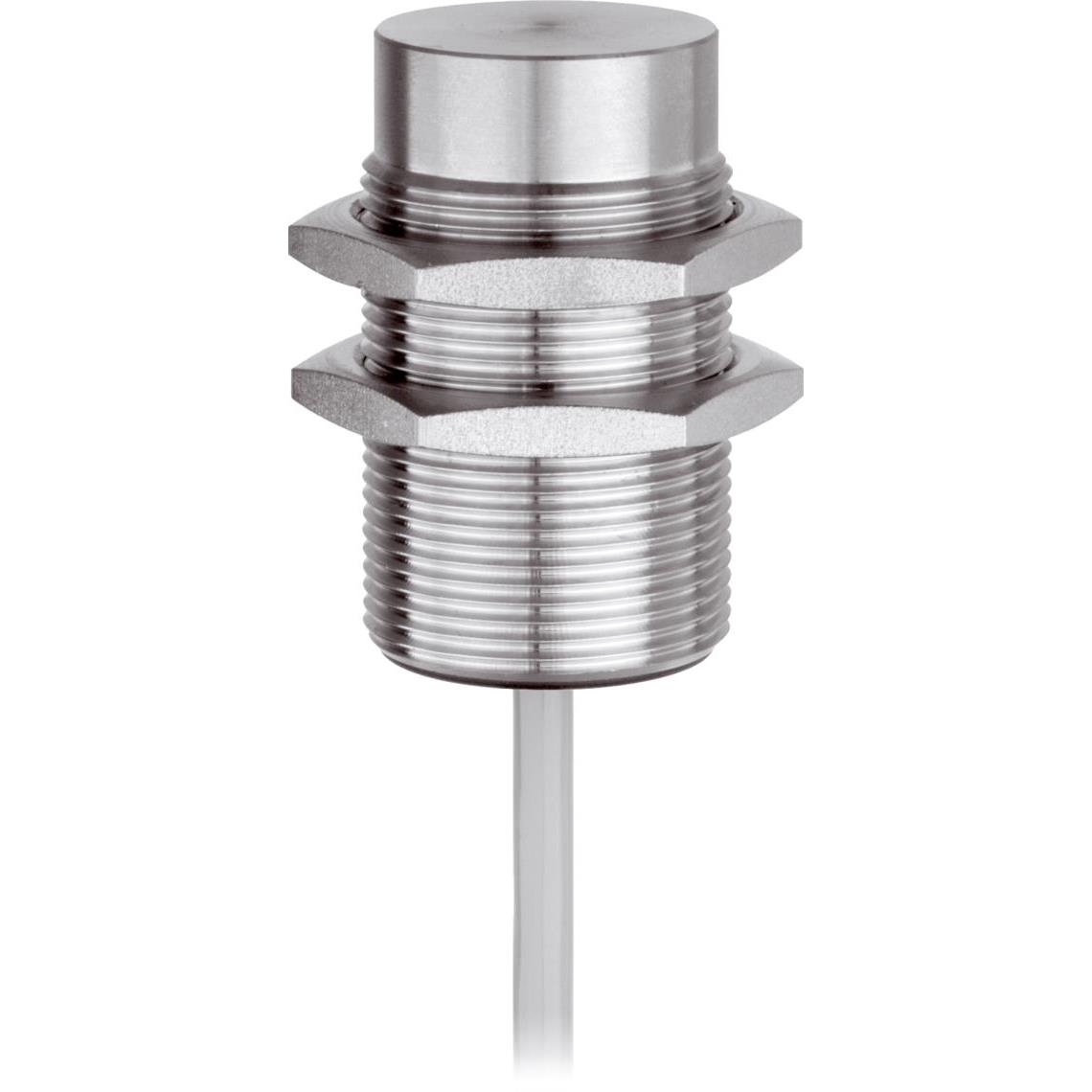

SENSOR PROX INDUCTIVE 40MM CYL
Technical Specifications
Parameters and characteristics for this part
| Specification | 202346 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP69K |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 70 °C, 70 °C |
| Operating Temperature (Min) | -25 °C, -25 °C |
| Output Type | 3-Wire, PNP-NC |
| Package / Case | Cylinder, Threaded - M30 |
| Response Frequency | 100 Hz |
| Sensing Distance | 1.575 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
