N2526-6V0C-RB-WE

Active

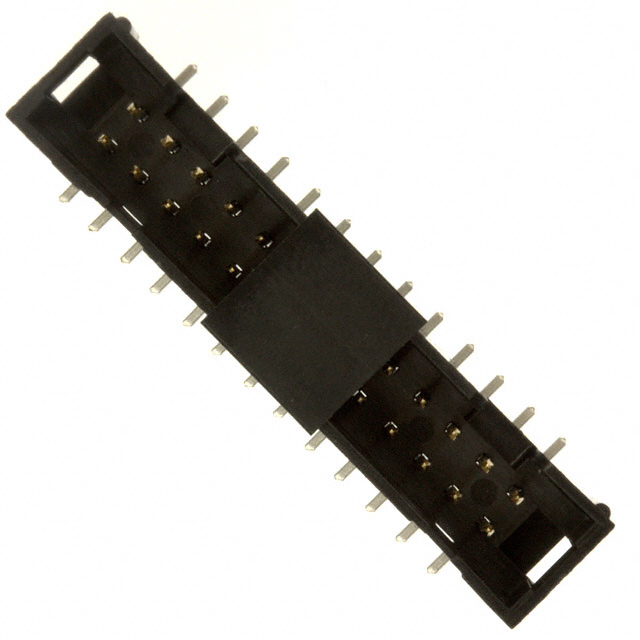

PIN HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 26 CONTACTS, SURFACE MOUNT, 2500 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +1

N2526-6V0C-RB-WE

Active

PIN HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 26 CONTACTS, SURFACE MOUNT, 2500 SERIES

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N2526-6V0C-RB-WE	N2526 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	-	2.84 mm
Contact Length - Post	-	0.112 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place, Keying Slot	Keying Slot, Pick and Place
Insulation Color	Black	Black
Insulation Height	-	0.338 in
Insulation Height	-	8.59 mm
Insulation Height [z]	9.91 mm	9.91 mm
Insulation Height [z]	0.39 in	0.39 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Through Hole, Right Angle, Surface Mount
Number of Positions	26	26
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

N2526 Series

CONN HEADER R/A 26POS 2.54MM

Part	Features	Number of Positions Loaded	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions	Insulation Material	Contact Finish - Mating	Insulation Color	Contact Shape	Connector Type	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Material Flammability Rating	Termination	Contact Type	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Number of Rows	Fastening Type	Insulation Height [z]	Insulation Height [z]
3M N2526-5002-UB	Keying Slot	All	Board to Board, Cable	30 Áin	0.76 Ám	Tin-Lead	0.1 in	2.54 mm	26	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	Black	Square	Header	1.75 A	200 µin	5.08 µm	Shrouded - 4 Wall	UL94 V-0	Solder	Male Pin	2.84 mm	0.112 in	0.338 in	8.59 mm	105 ░C	-55 °C	Through Hole, Right Angle	2.54 mm	0.1 in	Copper Alloy	2	Push-Pull
3M N2526-5002-RB	Keying Slot	All	Board to Board, Cable	30 Áin	0.76 Ám	Tin	0.1 in	2.54 mm	26	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	Black	Square	Header	1.75 A	200 µin	5.08 µm	Shrouded - 4 Wall	UL94 V-0	Solder	Male Pin	2.84 mm	0.112 in	0.338 in	8.59 mm	105 ░C	-55 °C	Through Hole, Right Angle	2.54 mm	0.1 in	Copper Alloy	2	Push-Pull
3M N2526-50K2-UG	Keying Slot	All	Board to Board, Cable	15 µin	0.38 µm	Tin-Lead	0.1 in	2.54 mm	26	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	Black	Square	Header	1.75 A	200 µin	5.08 µm	Shrouded - 4 Wall	UL94 V-0	Solder	Male Pin	2.84 mm	0.112 in	0.338 in	8.59 mm	105 ░C	-55 °C	Through Hole, Right Angle	2.54 mm	0.1 in	Copper Alloy	2	Push-Pull
3M N2526-6V0C-RB-WE	Keying Slot, Pick and Place	All	Board to Board, Cable	30 Áin	0.76 Ám	Tin	0.1 in	2.54 mm	26	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Gold	Black	Square	Header	1.75 A	200 µin	5.08 µm	Shrouded - 4 Wall	UL94 V-0	Solder	Male Pin					105 ░C	-55 °C	Surface Mount	2.54 mm	0.1 in	Copper Alloy	2	Push-Pull	9.91 mm	0.39 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.11
		10	$ 5.19
		100	$ 4.41
	Tape & Reel (TR)	200	$ 3.57
		400	$ 3.42

Description

General part information

N2526 Series

Connector Header Surface Mount 26 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Product Change Notice EN

Datasheet

Drawing EN

Datasheet
