SP-2533-01
ActiveSame Sky (Formerly CUI Devices)
AUDIO PLUG, 2.5 MM, STRAIGHT, 3
SP-2533-01
ActiveSame Sky (Formerly CUI Devices)
AUDIO PLUG, 2.5 MM, STRAIGHT, 3
Description
General part information
SP-2533-01

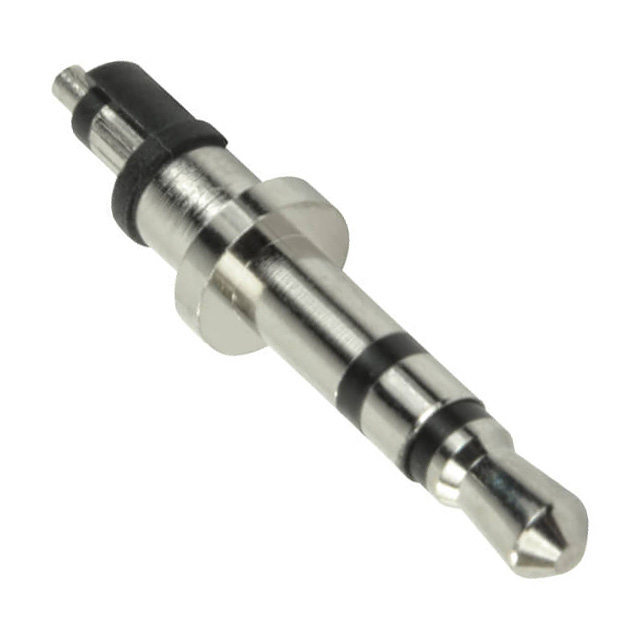

2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-2533-01 |
|---|---|
| Actual Diameter | 0.091 in |
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Current Rating | 1 A |
| Gender | Male |
| Industry Recognized Mating Diameter (Headphone - Miniature) | 2.5 mm |
| Industry Recognized Mating Diameter (Headphone - Sub Mini) | 2.5 mm |
| Industry Recognized Mating Diameter (Headphone Options) | Miniature, Sub Mini |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.433 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 3 Conductors |
| Number of Contacts | 3 Contacts |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Shielding | Unshielded |
| Signal Lines | 3 Conductor, TRS, Stereo |
| Termination | Solder |
| Voltage - Rated | 12 VAC |
