APX-SC00025
ActiveAdvanced Photonix
SENSOR PHOTODIODE TO46-2
APX-SC00025
ActiveAdvanced Photonix
SENSOR PHOTODIODE TO46-2
Description
General part information
APX-SC00025

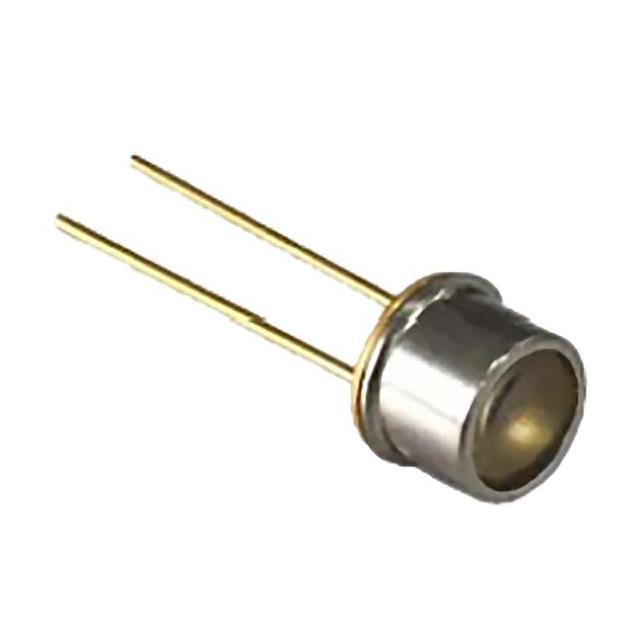

Photodiode TO-46-2 Lens Top Metal Can
Technical Specifications
Parameters and characteristics for this part
| Specification | APX-SC00025 |
|---|---|
| Active Area | 0.25 mm² |
| Current - Dark (Typ) | 300 pA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Responsivity | 0.13 A/W |
| Spectral Range (Maximum) | 380 nm |
| Spectral Range (Minimum) | 200 nm |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
