LFB180100-000
ActiveLaird Technologies EMI

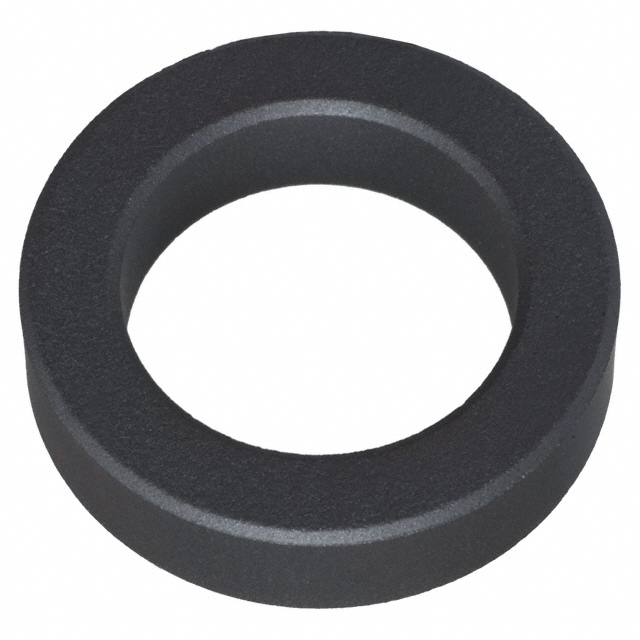

FERRITE CORE 29 OHM SOLID 10MM
LFB180100-000
ActiveLaird Technologies EMI
FERRITE CORE 29 OHM SOLID 10MM
Description
General part information
LFB180100-000
Solid Free Hanging Ferrite Core 29Ohm @ 5MHz ID 0.394" Dia (10.00mm) OD 0.713" Dia (18.10mm) Length 0.394" (10.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LFB180100-000 |
|---|---|
| Design | Solid |
| Impedance | 29 Ohm |
| Inner Dimension (Diameter) | 0.394 in |
| Length | 0.394 in |
| Material | LF |
| Mounting Type | Free Hanging |
| Outer Dimension (Diameter) | 0.713 in |
| Type | Round |
