SLF6028T-220MR77
ObsoleteTDK Corporation
FIXED IND 22UH 1.3A 124.8MOHM SM
SLF6028T-220MR77
ObsoleteTDK Corporation
FIXED IND 22UH 1.3A 124.8MOHM SM
Description
General part information
SLF6028T-220MR77

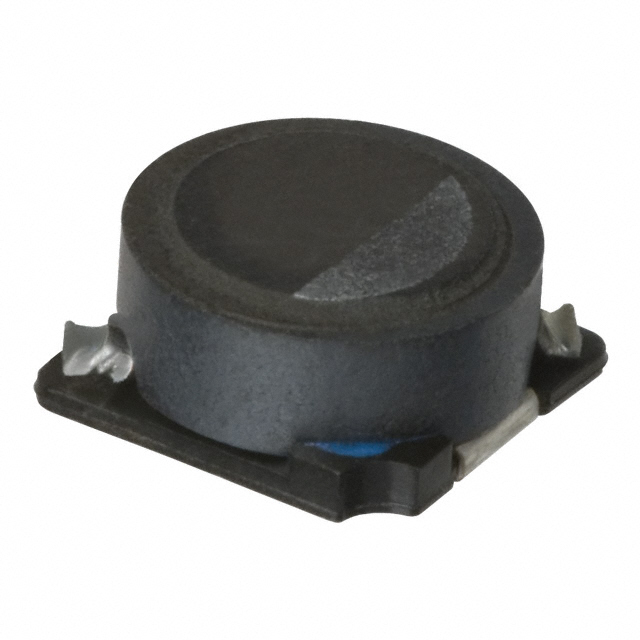

22 µH Shielded Drum Core, Wirewound Inductor 1.3 A 124.8mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SLF6028T-220MR77 |
|---|---|
| Current - Saturation (Isat) | 0.77 mA |
| Current Rating | 1.3 A |
| DC Resistance (DCR) (Max) | 124.8 mOhm |
| Height - Seated (Max) | 0.118 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.236 in |
| Size / Dimension Width | 0.236 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
