NSYS3X10830T
ActiveSCHNEIDER ELECTRIC
ENCLOSURE S STL 39.37"L X 31.5"W
NSYS3X10830T
ActiveSCHNEIDER ELECTRIC
ENCLOSURE S STL 39.37"L X 31.5"W
Description
General part information
NSYS3X10830T

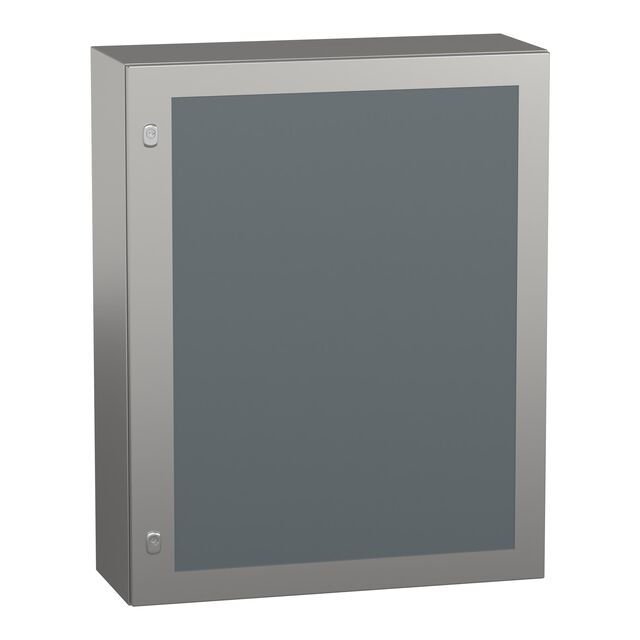

Enclosure Metal, Stainless Steel Gray, Smoke Cover/Door Hinged Door 39.370" L x 31.496" W (1000.00mm x 800.00mm) X 11.811" (300.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYS3X10830T |
|---|---|
| Area (L x W) | 1240 in² |
| Color | Smoke Cover/Door, Gray |
| Container Type | Enclosure |
| Design | Hinged Door |
| Height | 11.811 in |
| Material | Stainless Steel, Metal |
| Ratings | IP66 |
| Size / Dimension Length | 39.37 in |
| Size / Dimension Width | 31.496 in |
