ERU27M-8R5L
ActiveEPCOS - TDK Electronics
FLAT WIRE SMD HIGH CURRENT IND 8
ERU27M-8R5L
ActiveEPCOS - TDK Electronics
FLAT WIRE SMD HIGH CURRENT IND 8
Description
General part information
ERU27M-8R5L

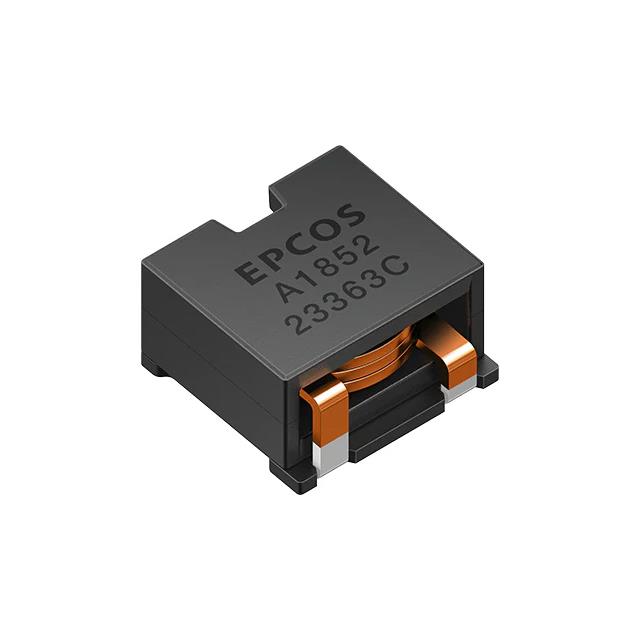

8.5 µH Shielded Wirewound Inductor 36 A 1.66mOhm Nonstandard, 3 Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ERU27M-8R5L |
|---|---|
| Current - Saturation (Isat) | 46 A |
| Current Rating | 36 A |
| DC Resistance (DCR) | 1.66 mOhm |
| Height - Seated (Max) | 0.669 in |
| Inductance | 8.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Alloy Powder |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 3 Leads |
| Package Name | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 1.067 in |
| Size / Dimension Width | 1.006 in |
| Tolerance | 20 % |
| Type | Wirewound |
