1419173
ActivePhoenix Contact

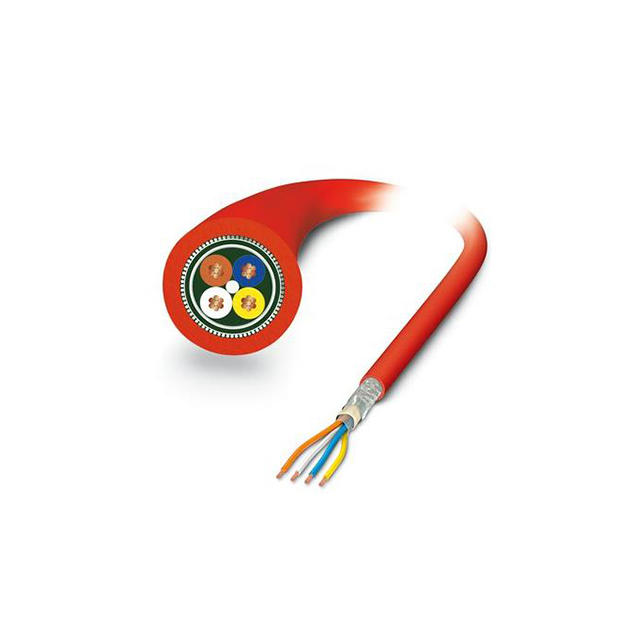

CABLE CAT5E 4COND 22AWG RED 100M
1419173
ActivePhoenix Contact
CABLE CAT5E 4COND 22AWG RED 100M
Description
General part information
1419173
4 (2 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Red 22 AWG Foil 328.1' (100.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1419173 |
|---|---|
| Cable Type | Multi-Pair, Cat5e |
| Conductor Arrangement | Twisted |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Tinned, Copper |
| Jacket (Insulation) Diameter | 0.256 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Red |
| Length | 328.1 ft |
| Number of Conductors | 4 |
| Number of Conductors - Pair | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Voltage | 2000 V |
| Wire Gauge | 22 AWG |
