RCP 400
ActiveBopla Enclosures
HOUSING ABS 14.291"L X 12.56"W
RCP 400
ActiveBopla Enclosures
HOUSING ABS 14.291"L X 12.56"W
Description
General part information
RCP 400

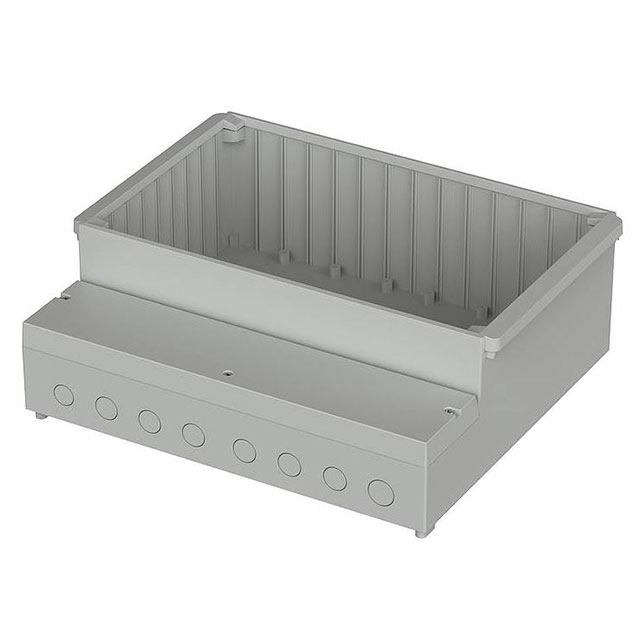

Housing Plastic, ABS Gray Cover Included 14.291" L x 12.559" W (363.00mm x 319.00mm) X 5.039" (128.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | RCP 400 |
|---|---|
| Area (L x W) | 179 in² |
| Color | Gray |
| Container Type | Housing |
| Design | Cover Included |
| Features | PCB Supports, Card Guides |
| Height | 5.039 in |
| Material | ABS, Plastic |
| Material Flammability Rating | UL94 HB |
| Ratings | IP40 |
| Size / Dimension Length | 14.291 in |
| Size / Dimension Width | 12.559 in |
| Thickness | 0.118 in |
| Weight | 3.9 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
