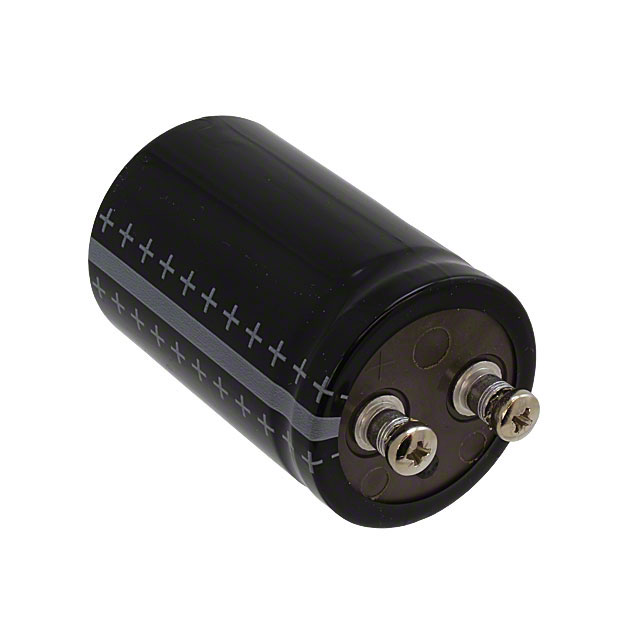

Specification	B41550E8109Q000

Applications	General Purpose
Capacitance	10000 µF
ESR (Equivalent Series Resistance)	18 mOhm
Height - Seated (Max)	3.217 in
Impedance	14 mOhm
Lead Spacing	0.874 in
Lifetime	20000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	13 A
Size / Dimension Diameter	2.032 in
Tolerance (Negative)	10 %
Tolerance (Positive)	30 %
Voltage - Rated	63 V
