ActiveFair-Rite Products Corp.
FERRITE CORE PQ SET
6698272521
ActiveFair-Rite Products Corp.
FERRITE CORE PQ SET
Description
General part information
6698272521

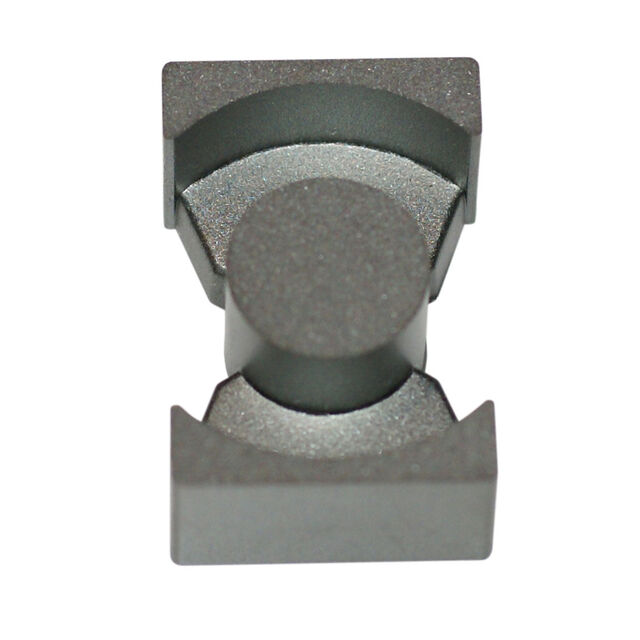

Uncoated Ferrite Core PQ Type Length 0.748" (19.00mm) Width Diameter 0.492" (12.50mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | 6698272521 |
|---|---|
| Core Factor (ΣI/A) mm⁻¹ | 45.9 mm⁻¹ |
| Core Type | PQ |
| Effective Area (Ae) | 117.7 mm² |
| Effective Length (le) | 54 mm |
| Effective Magnetic Volume (Ve) | 6359 mm³ |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 0.492 in |
| Initial Permeability (µi) | 2400 |
| Minimum Core Cross Section (Amin) (mm²) | 113.1 mm² |
| Tolerance | 25 % |
| Width | 0.748 in |
