2-1377175-6
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 13.5-15.5AWG 0.250
2-1377175-6
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 13.5-15.5AWG 0.250
Description
General part information
2-1377175-6

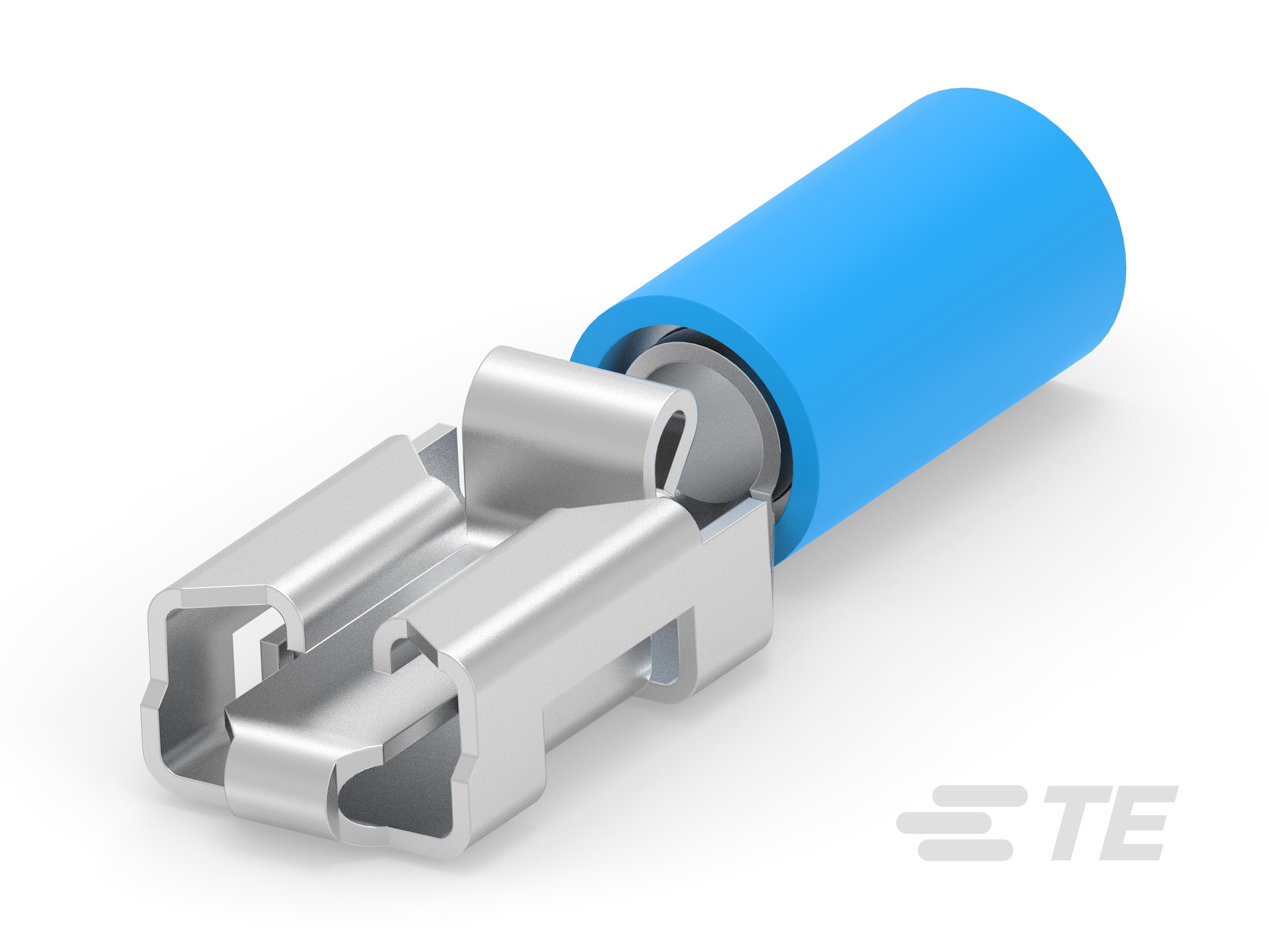

Quick Disconnect Receptacle, 16 – 14 AWG, 1.5 – 2.5 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Brass, Tin Plating, Bag, Compression Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1377175-6 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Mating End Insulated |
| Length - Overall | 0.957 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
