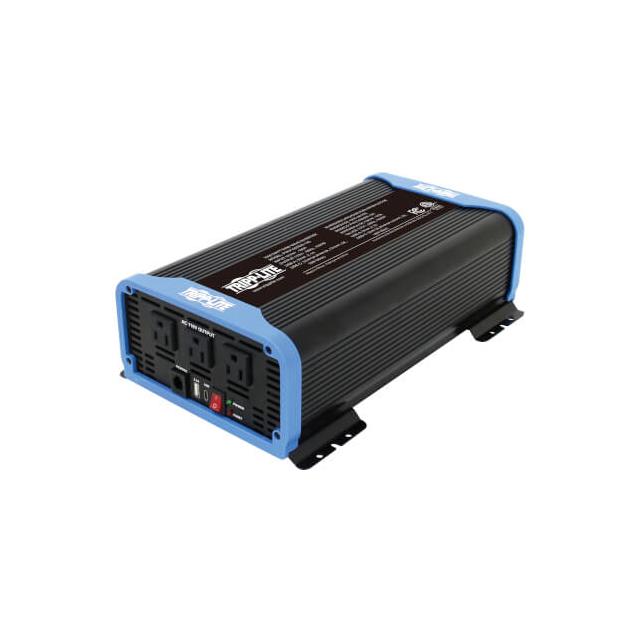

PINV1500SW-120
ActiveEaton Tripp Lite
DC/AC INVERTER, 12 V, 3 OUTLETS, 110 VAC, 1.5 KW
PINV1500SW-120
ActiveEaton Tripp Lite
DC/AC INVERTER, 12 V, 3 OUTLETS, 110 VAC, 1.5 KW
Description
General part information
PINV1500SW-120
12VDC Voltage Input 1500 W Power Output Continuous Inverter 3 AC Outlets NEMA 5-15R (3) North America
Technical Specifications
Parameters and characteristics for this part
| Specification | PINV1500SW-120 |
|---|---|
| AC Outlets (Count) | 3 count |
| Connector - AC Output | NEMA 5-15R |
| Connector - AC Output Quantity (NEMA 5-15R) | 3 pcs |
| Connector - Voltage Input | Terminals |
| Features | USB Port(s) |
| Power - Output Continuous | 1500 VA |
| Power - Output Surge | 3 kW |
| Region Utilized | North America |
| Remote Capability | Yes |
| Size Height | 4.1 " |
| Size Length | 14.5 " |
| Size Width | 8.3 " |
| Type | Inverter |
| Voltage - Input | 12 V |
| Voltage - Output | 110 V |
