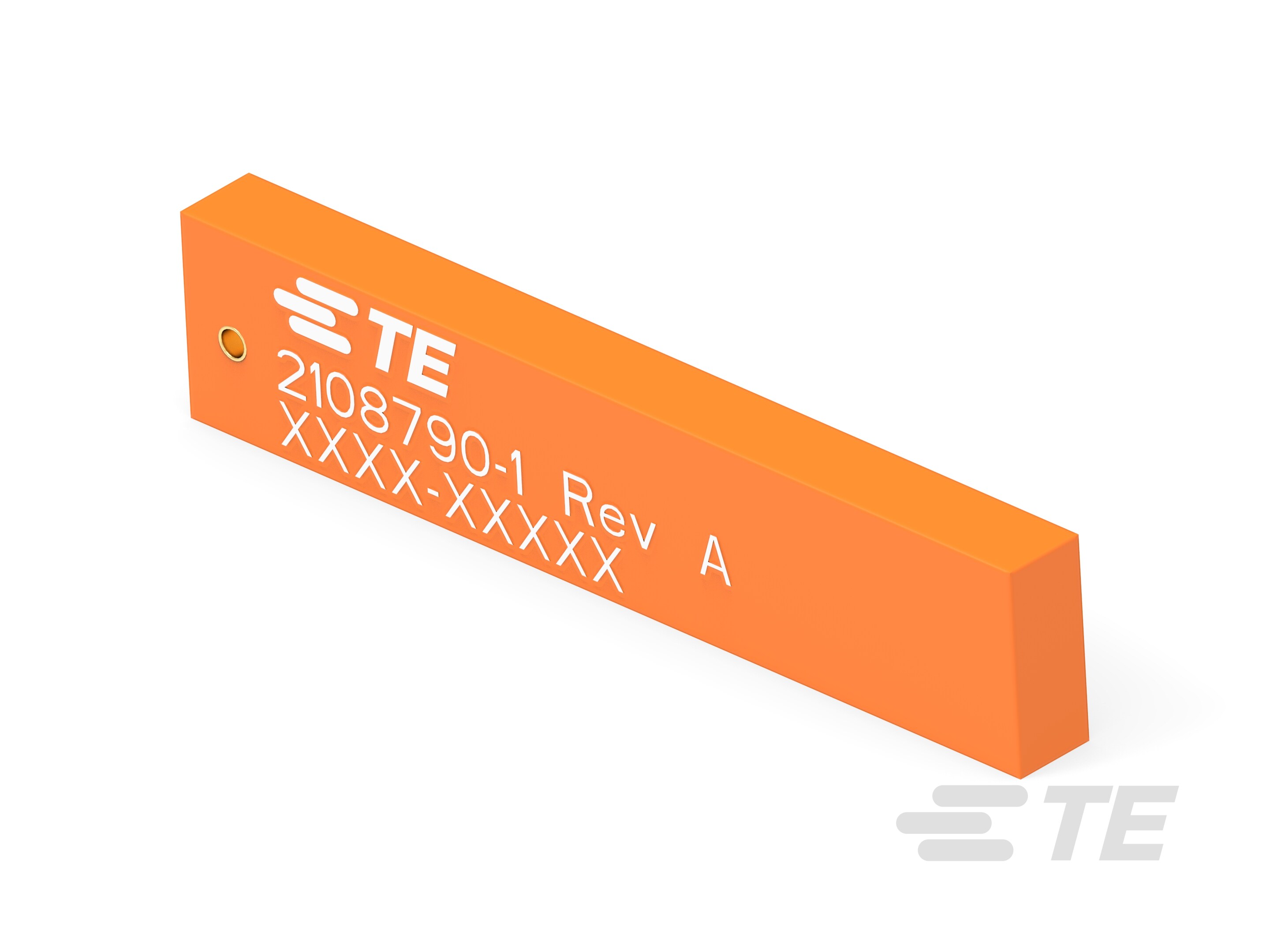

2108790-1
LTBTE Connectivity AMP Connectors
PCB ANTENNA SINGLE BAND BULK PACKAGED
2108790-1
LTBTE Connectivity AMP Connectors
PCB ANTENNA SINGLE BAND BULK PACKAGED
Description
General part information
2108790-1
Chip Antenna, Single Band, Bluetooth / Wi-Fi, Internal/Embedded Mount, Surface Mount, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | 2108790-1 |
|---|---|
| Antenna Type | Chip |
| Applications | Zigbee™, 802.11b/g, Bluetooth, WLAN, Wi-Fi |
| Frequency (Center/Band) | 2.441 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 2.483 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 3 dBi |
| Height (Max) | 0.062 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| RF Family/Standard | WiFi, Bluetooth |
| Termination | Solder |
| VSWR | 2 |
