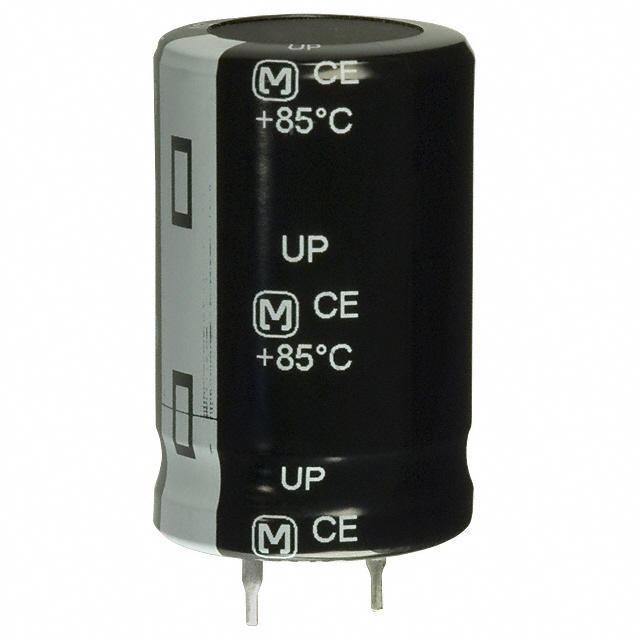

Specification	ECO-S1HP472BA

Applications	General Purpose
Capacitance	4700 µF
ESR (Equivalent Series Resistance)	71 mOhm
Height - Seated (Max)	1.378 in
Lead Spacing	0.394 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	3.03 A, 3.485 A
Size / Dimension Diameter	0.866 in
Tolerance	20 %
Voltage - Rated	50 V

ECO-S1 Series

...

Part	Lead Spacing	Operating Temperature (Min)	Operating Temperature (Max)	Ripple Current	Package / Case	Voltage - Rated	Applications	Mounting Type	ESR (Equivalent Series Resistance)	Lifetime	Capacitance	Size / Dimension Diameter	Height - Seated (Max)	Tolerance	Polarization
Panasonic Electronic Components ECO-S1KA102CA	0.394 in	-40 °C	105 °C	1.3 A 1.495 A	Can - Snap-In Radial	80 Vp-p	General Purpose	Through Hole	182 mOhm	3000 Hrs	1000 µF	0.984 in	1.063 in	20 %	Polar
Panasonic Electronic Components ECO-S1VA562BA	0.394 in	-40 °C	105 °C	2.4 A 2.76 A	Can - Snap-In Radial	35 V	General Purpose	Through Hole	74 mOhm	3000 Hrs	5600 µF	0.866 in	1.457 in	20 %	Polar
Panasonic Electronic Components ECO-S1VA822BA	0.394 in	-40 °C	105 °C	2.9 A 3.335 A	Can - Snap-In Radial	35 V	General Purpose	Through Hole	51 mOhm	3000 Hrs	8200 µF	0.866 in	2.047 in	20 %	Polar
Panasonic Electronic Components ECO-S1KA682EA	0.394 in	-40 °C	105 °C	3.9 A 4.485 A	Can - Snap-In Radial	80 Vp-p	General Purpose	Through Hole	41 mOhm	3000 Hrs	6800 µF	1.378 in	2.047 in	20 %	Polar
Panasonic Electronic Components ECO-S1VP223EA	0.394 in	-40 °C	85 °C	6.1 A 7.015 A	Can - Snap-In Radial	35 V	General Purpose	Through Hole	26 mOhm	3000 Hrs	22000 µF	1.378 in	1.575 in	20 %	Polar
Panasonic Electronic Components ECO-S1VP222BA	0.394 in	-40 °C	85 °C	1.52 A 1.748 A	Can - Snap-In Radial	35 V	General Purpose	Through Hole	166 mOhm	3000 Hrs	2200 ĄF	0.866 in	0.984 in	20 %	Polar
Panasonic Electronic Components ECO-S1JA272BA	0.394 in	-40 °C	105 °C	2.2 A 2.53 A	Can - Snap-In Radial	63 V	General Purpose	Through Hole	104 mOhm	3000 Hrs	2700 µF	0.866 in	1.654 in	20 %	Polar
Panasonic Electronic Components ECO-S1JA272DA	0.394 in	-40 °C	105 °C	2.2 A 2.53 A	Can - Snap-In Radial	63 V	General Purpose	Through Hole	104 mOhm	3000 Hrs	2700 µF	1.181 in	1.063 in	20 %	Polar
Panasonic Electronic Components ECO-S1JA392CA	0.394 in	-40 °C	105 °C	2.7 A 3.105 A	Can - Snap-In Radial	63 V	General Purpose	Through Hole	77 mOhm	3000 Hrs	3900 µF	0.984 in	1.85 in	20 %	Polar
Panasonic Electronic Components ECO-S1EA682CA	0.394 in	-40 °C	105 °C	2.4 A 2.76 A	Can - Snap-In Radial	25 VAC	General Purpose	Through Hole	73 mOhm	3000 Hrs	6800 µF	0.984 in	1.063 in	20 %	Polar

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ECO-S1HP472BA | Datasheet
