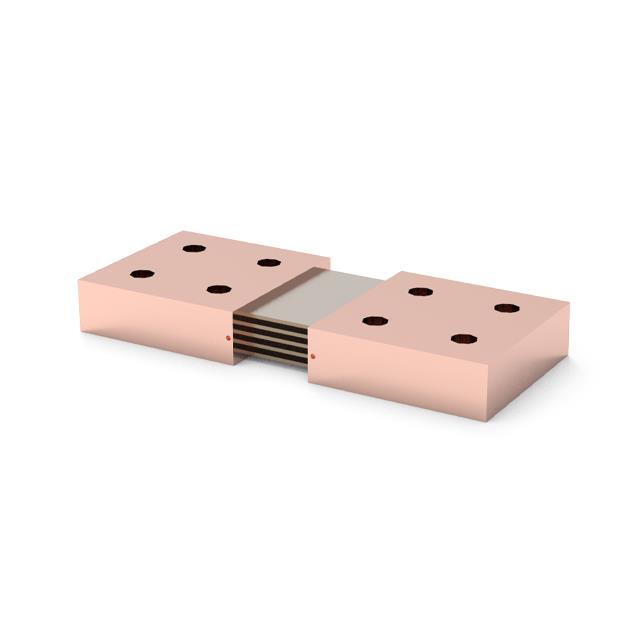

RTCS2000B050Z00
ActiveC&B Eureka Innovations
SHUNT 2000A 0.05V 0.1%
RTCS2000B050Z00
ActiveC&B Eureka Innovations
SHUNT 2000A 0.05V 0.1%
Description
General part information
RTCS2000B050Z00
25 µOhms ±0.1% Metal Element Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | RTCS2000B050Z00 |
|---|---|
| Composition | Metal Element |
| Features | Current Sense |
| Height - Seated (Max) | 1.181 in |
| Lead Style | M3 Threaded |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 140 °C, 170 °C |
| Operating Temperature (Min) | -40 °C, -55 °C |
| Package / Case | Rectangular Case - Open |
| Resistance | 25 µOhms |
| Size / Dimension Length | 9.606 in |
| Size / Dimension Width | 3.917 in |
| Temperature Coefficient | 20 ppm/¯C |
| Tolerance | 0.1 % |
