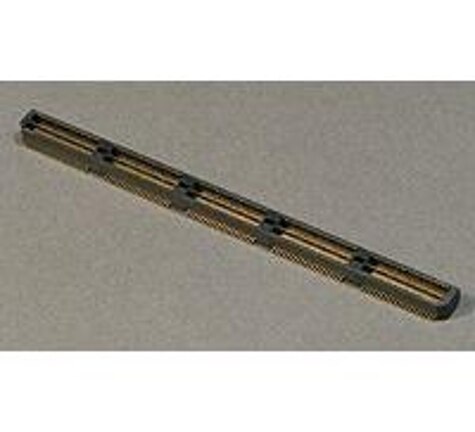

Specification	2-1658013-5

Connector Type	Plug, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	100 µin
Features	Ground Bus (Plane), Board Guide
Height Above Board	0.168 in
Mated Stacking Height	5 mm
Mounting Type	Surface Mount
Number of Positions	200
Number of Rows	2
Pitch	0.031 in

1658013 Series

Board to Board & Mezzanine Connectors MSB0.80PL30ASY080FL -,F,-TY

Part	Mounting Type	Pitch	Contact Finish	Number of Rows	Connector Type	Features	Contact Finish Thickness	Number of Positions	Height Above Board	Mated Stacking Height
TE Connectivity AMP Connectors 6-1658013-1	Surface Mount	0.031 in	Gold	2	Outer Shroud Contacts Plug	Board Guide Ground Bus (Plane)	10 Ąin	40	0.168 in
TE Connectivity AMP Connectors 3-1658013-2	Surface Mount	0.031 in	Gold	2	Outer Shroud Contacts Plug	Board Guide Ground Bus (Plane)	100 µin	56	0.168 in	5 mm
TE Connectivity AMP Connectors 1658013-5	Surface Mount	0.031 in	Gold	2	Outer Shroud Contacts Plug	Board Guide Ground Bus (Plane)	10 Ąin	200	0.168 in
TE Connectivity AMP Connectors 3-1658013-5	Surface Mount	0.031 in	Gold	2	Outer Shroud Contacts Plug	Board Guide Ground Bus (Plane)	100 µin	140	0.168 in	5 mm
TE Connectivity AMP Connectors 1658013-1	Surface Mount	0.031 in	Gold	2	Outer Shroud Contacts Plug	Board Guide Ground Bus (Plane)	10 Ąin	40	0.168 in
TE Connectivity AMP Connectors 7-1658013-2	Surface Mount	0.031 in	Gold	2	Differential Pair Array MALE	Board Guide Ground Bus (Plane)	10 Ąin	56	0.168 in
TE Connectivity AMP Connectors 2-1658013-4	Surface Mount	0.031 in	Gold	2	Outer Shroud Contacts Plug	Board Guide Ground Bus (Plane)	10 Ąin	160	0.168 in
TE Connectivity AMP Connectors 3-1658013-1	Surface Mount	0.031 in	Gold	2	Differential Pair Array MALE	Board Guide Ground Bus (Plane)	10 Ąin	28	0.168 in
TE Connectivity AMP Connectors 1658013-3	Surface Mount	0.031 in	Gold	2	Outer Shroud Contacts Plug	Board Guide Ground Bus (Plane)	10 Ąin	120	0.168 in
TE Connectivity AMP Connectors 1-1658013-4	Surface Mount	0.031 in	Gold	2	Outer Shroud Contacts Plug	Board Guide Ground Bus (Plane)	100 µin	112	0.168 in	5 mm
